更多>>亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125
來源：http://m.jqhs.com.cn 作者：康比電子 2022年07月13
我們的振蕩器是低抖動、高度穩定的晶體振蕩器模塊，將成熟的石英晶體諧振器技術與領先的時鐘 IC 技術相結合。我們的電壓控制振蕩器提供 CMOS/TTL、LVPECL或LVDS輸出邏輯，可為各種應用（包括 WiFi、WiMax、PON 和 SONET/SDH 等電信標準）實現非常嚴格的 ±20 ppm 整體精度。此外，一些振蕩器產品還具有電壓控制功能，可以在線調整輸出頻率，用于數據信號采集、時鐘重定時和抖動衰減或頻率合成。

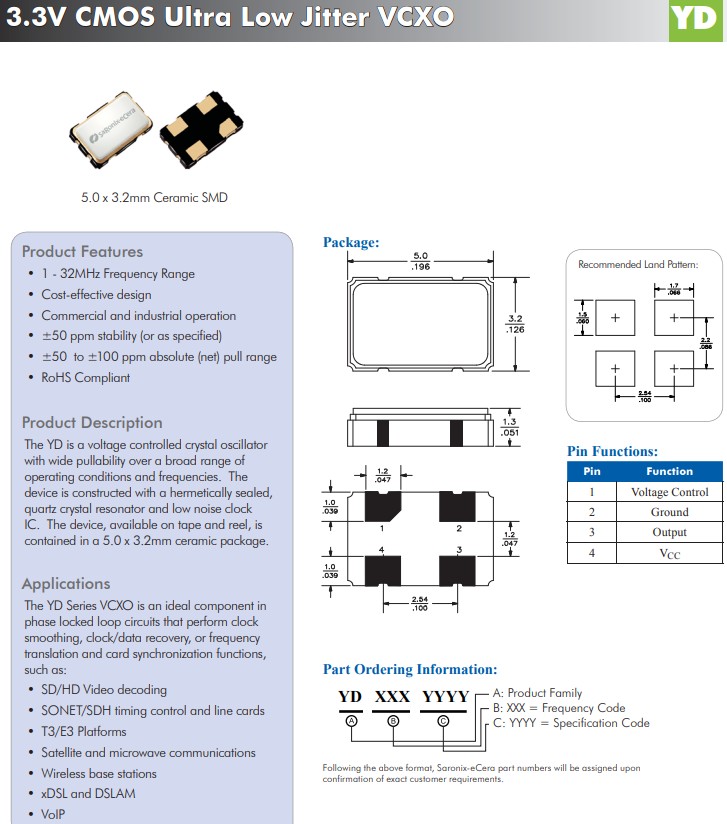

亞陶晶振YD系列是一種壓控晶體振蕩器，在廣泛的工作條件和頻率范圍內具有廣泛的可拉性。該器件由密封的石英晶體諧振器和低噪聲時鐘IC構成。該器件采用卷帶包裝，小體積晶振采用5.0x3.2mm陶瓷封裝。YD系列超低抖動VCXO是執行時鐘平滑、時鐘/數據恢復或頻率轉換和卡同步功能的鎖相環電路中的理想組件。亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
| FD6250011 | Diodes Incorporated | SaRonix-eCera™ FD | 62.5MHz | ±50ppm |
| FD6400006 | Diodes Incorporated | SaRonix-eCera™ FD | 64MHz | ±50ppm |
| FD6400007 | Diodes Incorporated | SaRonix-eCera™ FD | 64MHz | ±25ppm |
| FD6400008 | Diodes Incorporated | SaRonix-eCera™ FD | 64MHz | ±50ppm |
| FD6600015 | Diodes Incorporated | SaRonix-eCera™ FD | 66MHz | ±25ppm |
| FD6600016 | Diodes Incorporated | SaRonix-eCera™ FD | 66MHz | ±50ppm |
| FD6600017 | Diodes Incorporated | SaRonix-eCera™ FD | 66MHz | ±50ppm |
| FD6660016 | Diodes Incorporated | SaRonix-eCera™ FD | 66.666MHz | ±50ppm |
| FD6660017 | Diodes Incorporated | SaRonix-eCera™ FD | 66.666MHz | ±25ppm |
| FD6660018 | Diodes Incorporated | SaRonix-eCera™ FD | 66.666MHz | ±50ppm |
| FD6660019 | Diodes Incorporated | SaRonix-eCera™ FD | 66.6667MHz | ±50ppm |
| FD6660020 | Diodes Incorporated | SaRonix-eCera™ FD | 66.6667MHz | ±25ppm |
| FD6660021 | Diodes Incorporated | SaRonix-eCera™ FD | 66.6667MHz | ±50ppm |
| FD6660024 | Diodes Incorporated | SaRonix-eCera™ FD | 66.667MHz | ±25ppm |
| FD6800001 | Diodes Incorporated | SaRonix-eCera™ FD | 68MHz | ±50ppm |
| FD7420006 | Diodes Incorporated | SaRonix-eCera™ FD | 74.25MHz | ±25ppm |
| FD7500010 | Diodes Incorporated | SaRonix-eCera™ FD | 75MHz | ±50ppm |
| FD7500011 | Diodes Incorporated | SaRonix-eCera™ FD | 75MHz | ±25ppm |
| FD7500013 | Diodes Incorporated | SaRonix-eCera™ FD | 75MHz | ±50ppm |
| FD7770004 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
| FD7770005 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±25ppm |
| FD7770006 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
| FD7770007 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
| FD7770008 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±25ppm |
| FD7770009 | Diodes Incorporated | SaRonix-eCera™ FD | 77.76MHz | ±50ppm |
亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
特征：
特征：
頻率范圍：1至32MHz 有源晶振
高性價比的設計
商業和工業運營
±50 ppm 穩定性（或按規定）
±50 至 ±100 ppm 絕對（凈）牽引范圍
符合 RoHS 標準
應用：
標清/高清視頻解碼
SONET/SDH 時序控制和線卡
T3/E3 平臺
衛星和微波通信
無線基站
xDSL 和 DSLAM
網絡電話
.JPG)
.JPG)
| FDC500014 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm |
| FK0100001 | Diodes Incorporated | SaRonix-eCera™ FK | 1MHz | ±50ppm |
| FK0100002 | Diodes Incorporated | SaRonix-eCera™ FK | 1MHz | ±50ppm |
| FK0180004 | Diodes Incorporated | SaRonix-eCera™ FK | 1.843MHz | ±50ppm |
| FK0180005 | Diodes Incorporated | SaRonix-eCera™ FK | 1.843MHz | ±25ppm |
| FK0180006 | Diodes Incorporated | SaRonix-eCera™ FK | 1.843MHz | ±50ppm |
| FK0200002 | Diodes Incorporated | SaRonix-eCera™ FK | 2MHz | ±50ppm |
| FK0360002 | Diodes Incorporated | SaRonix-eCera™ FK | 3.686MHz | ±50ppm |
| FK0360003 | Diodes Incorporated | SaRonix-eCera™ FK | 3.686MHz | ±25ppm |
| FK0360004 | Diodes Incorporated | SaRonix-eCera™ FK | 3.686MHz | ±50ppm |
| FK0400005 | Diodes Incorporated | SaRonix-eCera™ FK | 4MHz | ±25ppm |
| FK0400007 | Diodes Incorporated | SaRonix-eCera™ FK | 4MHz | ±50ppm |
| FK0500002 | Diodes Incorporated | SaRonix-eCera™ FK | 5MHz | ±50ppm |
| FK0530001 | Diodes Incorporated | SaRonix-eCera™ FK | 5.33MHz | ±50ppm |
| FK0610001 | Diodes Incorporated | SaRonix-eCera™ FK | 6.14MHz | ±25ppm |
| FK0670001 | Diodes Incorporated | SaRonix-eCera™ FK | 6.758MHz | ±25ppm |
| FK0800004 | Diodes Incorporated | SaRonix-eCera™ FK | 8MHz | ±50ppm |
| FK0810001 | Diodes Incorporated | SaRonix-eCera™ FK | 8.192MHz | ±50ppm |
| FK0810002 | Diodes Incorporated | SaRonix-eCera™ FK | 8.192MHz | ±25ppm |
| FK0810003 | Diodes Incorporated | SaRonix-eCera™ FK | 8.192MHz | ±50ppm |
| FK1000006 | Diodes Incorporated | SaRonix-eCera™ FK | 10MHz | ±50ppm |
| FK1000007 | Diodes Incorporated | SaRonix-eCera™ FK | 10MHz | ±25ppm |
| FK1000008 | Diodes Incorporated | SaRonix-eCera™ FK | 10MHz | ±50ppm |
| FK1200010 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm |
| FK1200013 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±25ppm |
| FK1220006 | Diodes Incorporated | SaRonix-eCera™ FK | 12.288MHz | ±25ppm |
| FK1220007 | Diodes Incorporated | SaRonix-eCera™ FK | 12.288MHz | ±50ppm |
| FK1220008 | Diodes Incorporated | SaRonix-eCera™ FK | 12.288MHz | ±25ppm |
| FK1220009 | Diodes Incorporated | SaRonix-eCera™ FK | 12.288MHz | ±50ppm |
| FK1300008 | Diodes Incorporated | SaRonix-eCera™ FK | 13MHz | ±50ppm |
| FK1300010 | Diodes Incorporated | SaRonix-eCera™ FK | 13MHz | ±50ppm |
| FK1430004 | Diodes Incorporated | SaRonix-eCera™ FK | 14.318MHz | ±50ppm |
| FK1600003 | Diodes Incorporated | SaRonix-eCera™ FK | 16MHz | ±25ppm |
| FK1600004 | Diodes Incorporated | SaRonix-eCera™ FK | 16MHz | ±50ppm |
| FK1600005 | Diodes Incorporated | SaRonix-eCera™ FK | 16MHz | ±50ppm |
| FK1630003 | Diodes Incorporated | SaRonix-eCera™ FK | 16.384MHz | ±50ppm |
| FK1630004 | Diodes Incorporated | SaRonix-eCera™ FK | 16.384MHz | ±25ppm |
| FK1630005 | Diodes Incorporated | SaRonix-eCera™ FK | 16.384MHz | ±50ppm |
| FK1840001 | Diodes Incorporated | SaRonix-eCera™ FK | 18.432MHz | ±50ppm |
| FK1840002 | Diodes Incorporated | SaRonix-eCera™ FK | 18.432MHz | ±25ppm |
| FK1840003 | Diodes Incorporated | SaRonix-eCera™ FK | 18.432MHz | ±50ppm |
| FK1940001 | Diodes Incorporated | SaRonix-eCera™ FK | 19.44MHz | ±50ppm |
| FK1940002 | Diodes Incorporated | SaRonix-eCera™ FK | 19.44MHz | ±25ppm |
| FK1940004 | Diodes Incorporated | SaRonix-eCera™ FK | 19.44MHz | ±50ppm |
| FK2000022 | Diodes Incorporated | SaRonix-eCera™ FK | 20MHz | ±50ppm |
| FK2000023 | Diodes Incorporated | SaRonix-eCera™ FK | 20MHz | ±25ppm |
| FK2000025 | Diodes Incorporated | SaRonix-eCera™ FK | 20MHz | ±50ppm |
| FK2400012 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±50ppm |
| FK2400013 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm |
| FK2400014 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±50ppm |

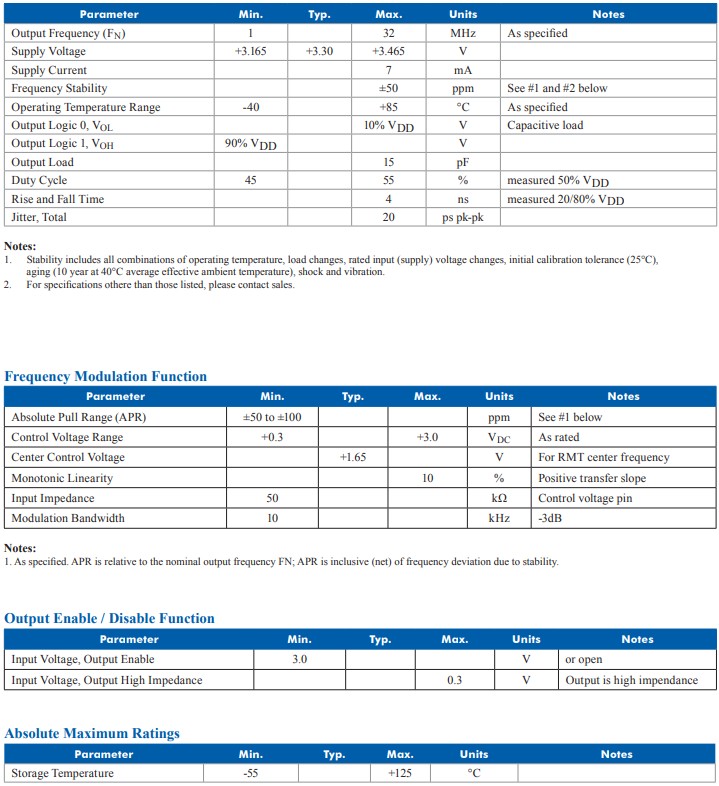

Product Parameters
| ProductSeries | YD_3 |
|---|---|
| Family | VCXO |
| Legacy PN | None |
| Output Logic | CMOS |
| SupplyVoltage | 3.3 |
| PullRange | 50 to 100 ppm |
| Freq Range (MHz) | 1 to 66 |
| Jitter RMS (ps) | <2 ps RMS |
| Package Type | Ceramic Seam |
| Package Size (mm) | 5.0 x 3.2 x 1.3 |
| Pads | 4 |
| NotRecommended | 0 |
亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
產品參數：
產品參數：
產品系列 YD_3
家庭 VCXO壓控振蕩器
舊版 PN 沒有任何
輸出邏輯 CMOS
電源電壓 3.3
拉距 50 至 100 ppm
頻率范圍 (MHz) 1 至 66
抖動均方根 (ps) <2 ps RMS
包裝類型 陶瓷縫
包裝尺寸 5.0x3.2x1.3mm
墊 4腳
不建議 0
亞陶晶振YD系列超低抖動壓控晶體振蕩器,YNETHE125,YD16.0005032,壓控晶體振蕩器,ECERA低抖動晶振
| FK2450008 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±50ppm |
| FK2450009 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm |
| FK2450010 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±50ppm |
| FK2500018 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK2500019 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm |
| FK2500026 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK2600016 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±50ppm |
| FK2600017 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±25ppm |
| FK2600019 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±50ppm |
| FK2600020 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±25ppm |
| FK2600024 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±50ppm |
| FK2600027 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±20ppm |
| FK2600028 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±50ppm |
| FK2700001 | Diodes Incorporated | SaRonix-eCera™ FK | 27MHz | ±25ppm |
| FK2700015 | Diodes Incorporated | SaRonix-eCera™ FK | 27MHz | ±50ppm |
| FK2700016 | Diodes Incorporated | SaRonix-eCera™ FK | 27MHz | ±25ppm |
| FK2700017 | Diodes Incorporated | SaRonix-eCera™ FK | 27MHz | ±20ppm |
| FK2700018 | Diodes Incorporated | SaRonix-eCera™ FK | 27MHz | ±50ppm |
| FK2700021 | Diodes Incorporated | SaRonix-eCera™ FK | 27MHz | ±50ppm |
| FK2820001 | Diodes Incorporated | SaRonix-eCera™ FK | 28.224MHz | ±25ppm |
| FK3000001 | Diodes Incorporated | SaRonix-eCera™ FK | 30MHz | ±50ppm |
| FK3000003 | Diodes Incorporated | SaRonix-eCera™ FK | 30MHz | ±25ppm |
| FK3000004 | Diodes Incorporated | SaRonix-eCera™ FK | 30MHz | ±50ppm |
| FK3000005 | Diodes Incorporated | SaRonix-eCera™ FK | 30MHz | ±50ppm |
| FK3000006 | Diodes Incorporated | SaRonix-eCera™ FK | 30MHz | ±50ppm |
YJ 3.3V None CMOS 1 to 52 <2 ps RMS Ceramic Seam 2.5x2.0x0.9 4 超低抖動
YK 3.3V None CMOS 1 to 66 <2 ps RMS Ceramic Seam 3.2x2.5 x1.0 4 超低抖動
YN 3.3V ST1307 CMOS 66 to 166 <2 ps RMS Ceramic Seam 7.0x5.0x2.0 6 PLL Base, 相位抖動 > 1ps
