更多>>UF322/UF32 XO系列是經過優化的晶體振蕩器系列
來源：http://m.jqhs.com.cn 作者：康比電子 2022年07月13
亞陶石英晶體振蕩器UF系列超低 抖動，微型，晶體振蕩器是 用于高性能計算和網絡的前沿 要求最苛刻的行業 高級應用。Automotivecompliant變體可用。 這種新型晶體振蕩器 支持廣泛的應用 要求非常低的噪音 采用最小的工業標準封裝之一。較大的包裝 也可滿足靈活 設計需求。 有多種輸出標準可供選擇: LVPECL，LVDS和HCSL，以及2.5V和3.3V的電源電壓， 提供客戶指定的頻率 高達212.5MHz，溫度 穩定性達到25PPM。
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器，可節省電路板空間。小體積晶振尺寸3.2x2.5mm、超低抖動LVPECL晶體振蕩器，該系列由具有超低抖動性能的高性能LVPECL差分晶振晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范.
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器，可節省電路板空間。小體積晶振尺寸3.2x2.5mm、超低抖動LVPECL晶體振蕩器，該系列由具有超低抖動性能的高性能LVPECL差分晶振晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范.
| FNSTB1027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm |
| FNSTB1027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm |
| FNSTB1027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm |
| FNSURV054 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 54MHz | ±30ppm |
| FNSURV054 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 54MHz | ±30ppm |
| FNSURV054 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 54MHz | ±30ppm |
| FDSAS6062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS6062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FDSAS6062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm |
| FN5000121 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN5000121 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN5000121 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FD2450017 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±50ppm |
| FD2450017 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±50ppm |
| FD2450017 | Diodes Incorporated | SaRonix-eCera™ FD | 24.576MHz | ±50ppm |
| FN2500140 | Diodes Incorporated | SaRonix-eCera™ FN | 25.000625MHz | ±25ppm |
| FN2500140 | Diodes Incorporated | SaRonix-eCera™ FN | 25.000625MHz | ±25ppm |
| FN2500140 | Diodes Incorporated | SaRonix-eCera™ FN | 25.000625MHz | ±25ppm |
| FN4800068 | Diodes Incorporated | SaRonix-eCera™ FN | 48MHz | ±50ppm |
| FN4800068 | Diodes Incorporated | SaRonix-eCera™ FN | 48MHz | ±50ppm |
| FN4800068 | Diodes Incorporated | SaRonix-eCera™ FN | 48MHz | ±50ppm |
| FN3330078 | Diodes Incorporated | SaRonix-eCera™ FN | 33.333MHz | ±30ppm |
| FN3330078 | Diodes Incorporated | SaRonix-eCera™ FN | 33.333MHz | ±30ppm |
| FN3330078 | Diodes Incorporated | SaRonix-eCera™ FN | 33.333MHz | ±30ppm |
| FN0200045 | Diodes Incorporated | SaRonix-eCera™ FN | 2.048MHz | ±50ppm |
| FN0200045 | Diodes Incorporated | SaRonix-eCera™ FN | 2.048MHz | ±50ppm |
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
特征：
特征：
0.05ps 典型值。0.07ps RMS最大值（12kHz至20MHz）
擴展溫度范圍高達125℃
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：
網絡系統
光模塊
服務器和存儲系統
專業視頻設備
測試與測量
FPGA/ASIC 時鐘生成
112G 串行應用
.JPG)
.JPG)
| FN0200045 | Diodes Incorporated | SaRonix-eCera™ FN | 2.048MHz | ±50ppm |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm |

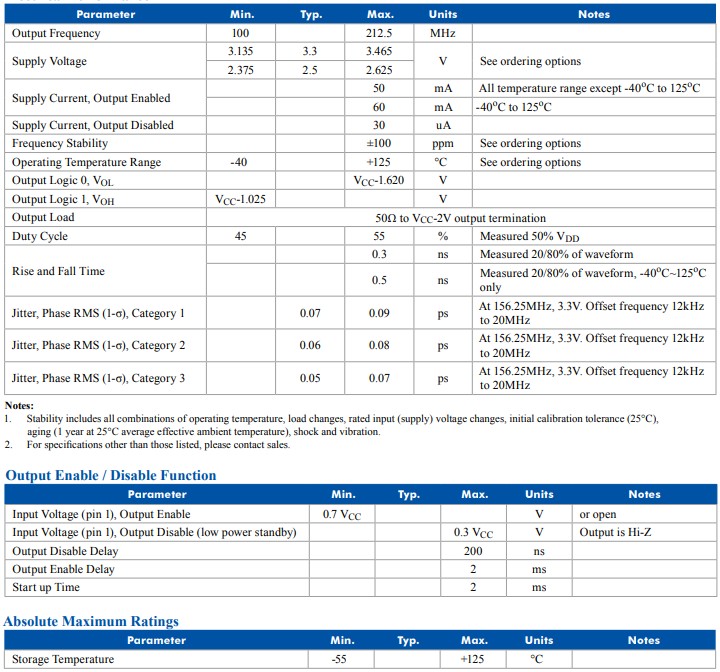

Product Parameters
| Stability (PPM) | 20 to 100 |
|---|---|
| Package Size (mm) | 3.2 x 2.5 x 0.9 |
| PkgType | Ceramic Seam |
| Freq Range (MHz) | 100 to 212.5 |
| Jitter RMS (ps) | 0.07 to 0.09 |
| Output Logic | LVPECL |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
| ProductSeries | UF3 |
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
產品參數：
產品參數：
穩定性 (PPM) 20到100

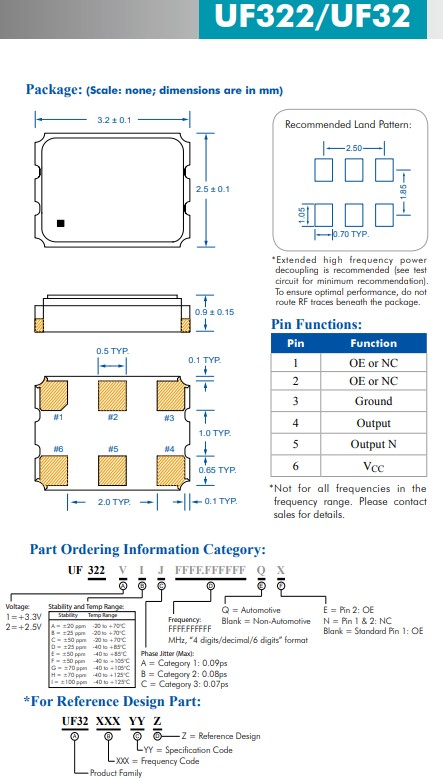

包裝尺寸 3.2x2.5x0.9mm
包裝類型 陶瓷縫
頻率范圍 (MHz) 100至212.5
抖動均方根 (ps) 0.07至0.09
輸出邏輯 LVPECL差分晶體振蕩器
電源電壓 (V) 3.3, 2.5
墊 6腳
產品系列 UF3
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
| FJ2500009 | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm |
| FJ2500009 | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm |
| NX7011D0074.175824 | Diodes Incorporated | SaRonix-eCera™ NX | 74.175824MHz | ±25ppm |
| NX7011D0074.175824 | Diodes Incorporated | SaRonix-eCera™ NX | 74.175824MHz | ±25ppm |
| NX7011D0074.175824 | Diodes Incorporated | SaRonix-eCera™ NX | 74.175824MHz | ±25ppm |
| FJ2500036Z | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm |
| FJ2500036Z | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm |
| FJ2500036Z | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm |
| HX7011C0050.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 50MHz | ±25ppm |
| HX7011C0050.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 50MHz | ±25ppm |
| HX7011C0050.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 50MHz | ±25ppm |
| SHA000001 | Diodes Incorporated | SaRonix-eCera™ SH | 100MHz | ±50ppm |
| SHA000001 | Diodes Incorporated | SaRonix-eCera™ SH | 100MHz | ±50ppm |
| SHA000001 | Diodes Incorporated | SaRonix-eCera™ SH | 100MHz | ±50ppm |
| HX7013D0100.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 100MHz | ±50ppm |
| HX7013D0100.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 100MHz | ±50ppm |
| HX7013D0100.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 100MHz | ±50ppm |
| FN3300073 | Diodes Incorporated | SaRonix-eCera™ FN | 33MHz | ±50ppm |
| NX7021D0148.351648 | Diodes Incorporated | SaRonix-eCera™ NX | 148.351648MHz | ±25ppm |
| NX7021D0148.351648 | Diodes Incorporated | SaRonix-eCera™ NX | 148.351648MHz | ±25ppm |
| NX7021D0148.351648 | Diodes Incorporated | SaRonix-eCera™ NX | 148.351648MHz | ±25ppm |
| NX7031D0200.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±25ppm |
| NX7031D0200.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±25ppm |
| NX7031D0200.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 200MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
UF系列為高速提供超低抖動
為高性能應用提供盡可能小的封裝。
UF系列XO石英晶體振蕩器
超低均方根抖動(典型值低至50fs)
超過苛刻應用的要求，并且
提供廣泛的設計余量
2.5毫米x 2.0mm毫米大小的包裝:
優化電路板空間以支持微型系統設計
寬溫度范圍(-40°C至125°C)
符合汽車行業標準(符合AEC-Q104)的版本
支持在惡劣環境中運行的加固設備設計
應用程序：光學模塊，網絡系統，測試和測量，裝備，112G系列應用，PCI 5.0架構，系統，服務器和存儲系統，專業視頻設備，FPGA/ASIC參考時鐘，發電機UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7021D0622.080000 | Diodes Incorporated | SaRonix-eCera™ NX | 622.08MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| NX7031D0644.531250 | Diodes Incorporated | SaRonix-eCera™ NX | 644.53125MHz | ±25ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF7021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| WF9021B0622.080000 | Diodes Incorporated | SaRonix-eCera™ WF | 622.08MHz | ±5ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270040 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| KD3270046Z | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| JX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ JX | 56MHz | ±50ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270050 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
UF322/UF32 XO系列是經過優化的晶體振蕩器系列,UF3221DA0212.500000,低相位抖動晶振,ECERA振蕩器
我們的晶體振蕩器 (CXO) 提供高價值、卓越的性能和功能以及卓越的品質和服務。我們為批量生產提供快速周轉樣品、響應式技術支持和快速交貨時間。
我們的晶體振蕩器 (CXO) 提供高價值、卓越的性能和功能以及卓越的品質和服務。我們為批量生產提供快速周轉樣品、響應式技術支持和快速交貨時間。
提供多種類型和特性：
1) 尺寸從7x5mm到2.0x1.6mm，
2) 傳統CXO的溫度穩定性為±5PPM，
3) CMOS/TTL、LVPECL、LVDS、HCSL的輸出邏輯格式，和慢性粒細胞白血病。
我們的CXO被領先制造商用于各種要求苛刻的應用，從消費類到工業、汽車 (AEC-Q200/AEC-Q104)、網絡、存儲、計算、電信等
