更多>>低抖動輸出時鐘振蕩器XCO793HU22-77.503MHz微處理器應用
來源：http://m.jqhs.com.cn 作者：康比電子 2023年05月31

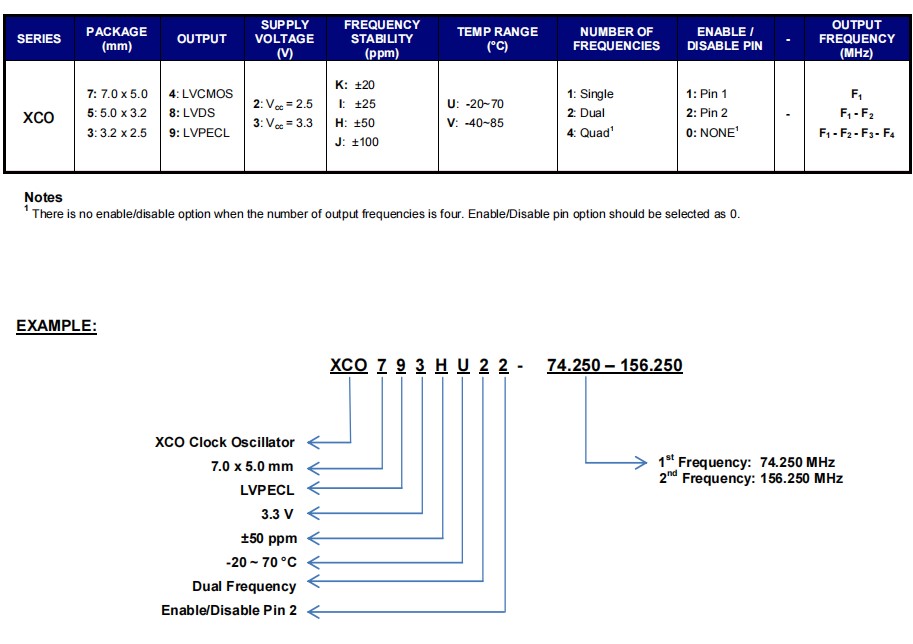

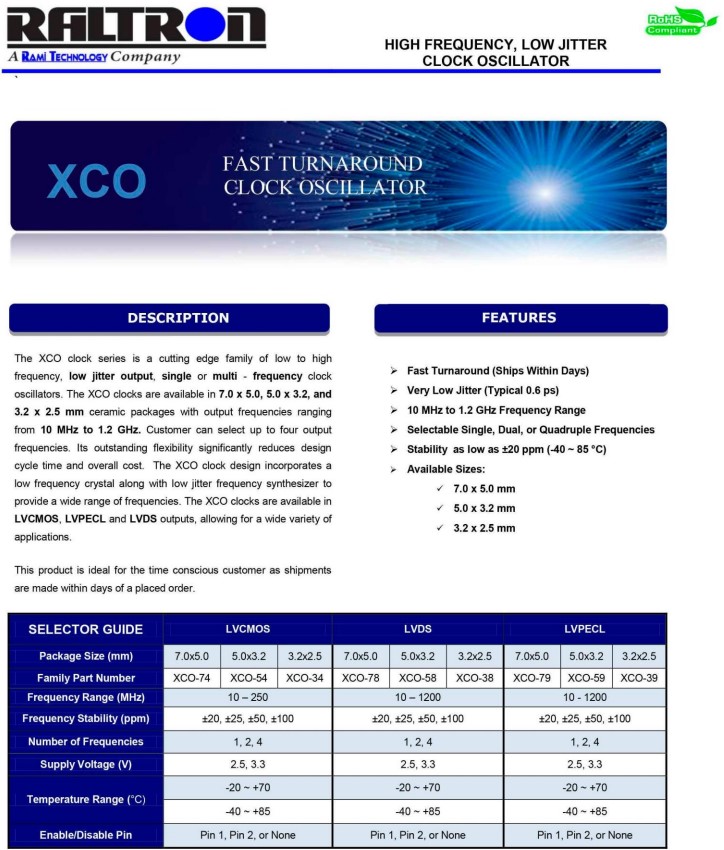

Raltron拉隆晶振公司通過紐約客電子公司提供XCO系列時鐘振蕩器，這是一個很好的替代解決方案。XCO時鐘系列是一個尖端的低頻到高頻、低抖動輸出、單頻或多頻時鐘振蕩器系列。石英振蕩器XCO提供7.0x5.0mm毫米、5.0x3.2mm毫米和3.2x2.5mm毫米陶瓷封裝，輸出頻率范圍為10MHz至1.2GHz，電壓范圍為2.5V和3.3V，頻率穩定性選項范圍為20PPM至100PPM。這種設計的高度靈活性大大減少了設計周期和總成本。有源晶振XCO時鐘設計結合了一個低頻晶體和低抖動頻率合成器，以提供寬范圍的頻率。XCO時鐘提供LVCMOS、LVPECL和LVDS輸出，支持廣泛的應用。低抖動輸出時鐘振蕩器XCO793HU22-77.503MHz微處理器應用
| 晶振詳情 | 頻率 | 頻率穩定性 | 電源電壓 |
| CO4305-25.000-EXT-T-TR | 25MHz | ±50ppm | 3.3V |
| Raltron | |||
| CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||
| CO4305-25.000-T-TR | 25MHz | ±50ppm | 3.3V |
| Raltron | |||
| CO43 系列 25 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | |||
| C01100-66.666MHZ | |||
| Raltron拉隆晶振 | |||
| CO1 Series 66.666 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | |||
| C019100-20.000 | 20MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 20 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | |||
| C04302-27.000-EXT-T | 27MHz | ±20ppm | 3.3V |
| Raltron | |||
| CO43 Series 27 MHz 7 x 5 mm 3.3 V ±20 ppm Surface Mount Clock Oscillator | |||
| CO4310-32.000-EXT-T-TR | |||
| Raltron | |||
| CO4 Series 32 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | |||
| CO4310-32.000-EXT-TR | 32MHz | ±100ppm | 3.3V |
| Raltron | |||
| CO43 Series 32 MHz 7 x 5 mm 3.3 V ±100 ppm Surface Mount Clock Oscillator | |||
| C04610-80.000-T-TR | 80MHz | ±100ppm | 3.3V |
| Raltron | |||
| CO46 系列 80 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝 時鐘振蕩器 | |||
| C04810-20.000MHZ-EXT-TR | 20MHz | ±100ppm | 5V |
| Raltron | |||
| CO48 Series 20 MHz 7 x 5 mm 5 V ±100 ppm Surface Mount Clock Oscillator | |||
| CLDPTSH-125.000 | 125MHz | ±50ppm | 2.5V |
| Raltron | |||
| Clock Series 125 MHz 2.5V ±50 ppm -0°C TO +70°C SMT LVDS Clock Oscillator | |||
| CO1050-29.4912 | 29.4912MHz | ±50ppm | 5V |
| Raltron | |||
| CO1 Series 29.4912 MHz 20.8 x 13.2 mm 5 V ±50 ppm Through Hole Clock Oscillator | |||
| CO1100-1.8432MHZ | 1.8432MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 1.8432 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | |||
| CO1100-11.0592MHZ | 11.0592MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 4.9152 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | |||
| CO1100-16.000MHZ-T | 16MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 16 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | |||
| CO1100-18.432-T | 18.432MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 18.432 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | |||
| CO1100-18.432-T | 18.432MHz | ±100ppm | 5V |
| Raltron石英晶體振蕩器 | |||
| CO1 Series 18.432 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | |||
| CO1100-39.3216-T | 39.3216MHz | ±100ppm | 5V |
| Raltron | |||
| CO1100 系列 39.3216 MHz 100 ppm 0° C至+70° C 時鐘振蕩器 | |||
| CO1100-4.9152MHZ | 4.9152MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 4.9152 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | |||
| CO1100-4.9152MHZ-40 | 4.9152MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 4.9152 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole TTL Clock Oscillator | |||
| CO1100-40.000MHZ | 40MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 40 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | |||
| CO1100-7.777728MHZ-40 | 7.77773MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 7.7777 MHz 5 V ±100 ppm -40°C TO +85°C Thru-Hole TTL Clock Oscillator | |||
| CO1100-70.000 | 70MHz | ±100ppm | 5V |
| Raltron | |||
| CO1 Series 70 MHz 20.8 x 13.2 mm 5 V ±100 ppm Through Hole Clock Oscillator | |||
| CO12050-20.000-EXT | 20MHz | ±50ppm | 5V |
| Raltron | |||
| CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator | |||
| CO12050-20.000-EXT | 20MHz | ±50ppm | 5V |
| Raltron | |||
| CO1 Series 20.00 MHz 5 V ±50 ppm -40°C TO +85°C Thru-Hole HCMOS Clock Oscillator |
XCO系列時鐘振蕩器特點：
快速周轉(幾天內發貨)
非常低的抖動(典型值0.6ps)
10MHz至1.2GHz頻率范圍
可選單頻、雙頻或四頻
穩定性低至20ppm (-40至+85°C)
可用尺寸:7.0x5.0mm、5.0x3.2mm、3.2x2.5mm石英貼片晶振
應用于：微處理器，微控制器，生產信息控制系統，中央處理器（central processing units的縮寫）
