更多>>Diodes編碼FN2000115為小體積的CMOS時鐘振蕩器,廣泛用于低抖動應用,ECERA有源晶振
來源：http://m.jqhs.com.cn 作者：lzf 2022年07月15
At Diodes Incorporated, respect for human rights is ingrained in our core values and in how we conduct business, interact with stakeholders (including customers, employees, and suppliers), and engage with the communities in which we operate. We are cognizant of the potential human rights issues and labor risks that may occur within the semiconductor supply chain, especially for the vulnerable populations in our society, and are committed to protecting and preserving these human rights and promoting human rights awareness.
在Diodes Incorporated，尊重人權根植于我們的核心價值觀以及我們如何開展業務，與利益相關者(包括客戶、員工和供應商)互動，與我們所在的社區建立聯系。我們認識到這種潛力半導體或晶體振蕩器供應鏈中可能出現的人權問題和勞工風險，特別是我們社會中的弱勢群體，并致力于保護和維護這些人權，促進人權意識。
PI4ULS3V4857 的時鐘頻率達到 208MHz，能夠支持目前最快的 SD 卡接口 - SD 3.0 SDR104。該 6 位器件也適用于 SDR50 (100MHz)、SDR25 (50MHz)、DDR50 (50MHz) 和 SDR12 (25MHz) 操作。向后兼容性意味著它也可以處理傳統的 SD 2.0 高速 (50MHz) 和默認速度(25MHz) 模式。
通過消除對外部電平轉換器的需要，節省了大量的電路板空間。內置的100mA LDO 穩壓器和電磁干擾 (EMI) 濾波器有助于進一步減少系統組件數量并限制物料清單成本。8kV 靜電放電 (ESD) 保護也已集成到轉換器設備中，從而確保長期運行。
PI4ULS3V4857采用小尺寸、20球WLCSP封裝，現在可提供3000片.
百利通亞陶晶振公司（納斯達克股票代碼：DIOD）今天宣布推出PI4ULS3V4857，這是一款符合 SD 3.0 標準的雙向電平轉換器，用于通信、消費類和計算系統應用，包括智能手機、筆記本電腦、SD/MicroSD 讀卡器、無線接入點和 5G 毫微微蜂窩基站.
PI4ULS3V4857 能夠將 1.2V 至 1.8V 主機側電壓轉換為 1.8V 或 3.0V 的存儲卡電壓信號，反之亦然。這允許 SD 3.0 存儲卡與最新的低壓微處理器、SoC 和 ASIC 結合使用，其傳輸時間比其他數據存儲解決方案短得多。| FN1220027 | Diodes晶振 | SaRonix-eCera™ FN | 12.288MHz | ±25ppm | -40°C ~ 85°C |
| FN1430053 | Diodes晶振 | SaRonix-eCera™ FN | 14.318MHz | ±25ppm | -40°C ~ 85°C |
| FN2000115 | Diodes晶振 | SaRonix-eCera™ FN | 20MHz | ±25ppm | -40°C ~ 85°C |
| FN2500156 | Diodes晶振 | SaRonix-eCera™ FN | 25MHz | ±20ppm | -20°C ~ 70°C |
| FN2500171 | Diodes晶振 | SaRonix-eCera™ FN | 25MHz | ±25ppm | -40°C ~ 85°C |
| FN2500175 | Diodes晶振 | SaRonix-eCera™ FN | 25MHz | ±25ppm | -40°C ~ 85°C |
| FN2500177 | Diodes晶振 | SaRonix-eCera™ FN | 25.002MHz | ±25ppm | -40°C ~ 85°C |
| FN2700077 | Diodes晶振 | SaRonix-eCera™ FN | 27MHz | ±20ppm | -20°C ~ 70°C |
| FN3000041 | Diodes晶振 | SaRonix-eCera™ FN | 30MHz | ±25ppm | -40°C ~ 85°C |
| FN3200033 | Diodes晶振 | SaRonix-eCera™ FN | 32MHz | ±25ppm | -40°C ~ 85°C |
| FN3270028 | Diodes晶振 | SaRonix-eCera™ FN | 32.768MHz | ±25ppm | -40°C ~ 85°C |
| FN3600001 | Diodes晶振 | SaRonix-eCera™ FN | 36MHz | ±25ppm | -40°C ~ 85°C |
| FN3600019 | Diodes晶振 | SaRonix-eCera™ FN | 36MHz | ±25ppm | -40°C ~ 85°C |
| FN3710001 | Diodes晶振 | SaRonix-eCera™ FN | 37.125MHz | ±25ppm | -40°C ~ 85°C |
| FN3840008 | Diodes晶振 | SaRonix-eCera™ FN | 38.4MHz | ±20ppm | -20°C ~ 70°C |
| FN4000162 | Diodes晶振 | SaRonix-eCera™ FN | 40MHz | ±20ppm | -20°C ~ 70°C |
| FN4800077 | Diodes晶振 | SaRonix-eCera™ FN | 48MHz | ±25ppm | -40°C ~ 85°C |
| FN5000118 | Diodes晶振 | SaRonix-eCera™ FN | 50MHz | ±25ppm | -40°C ~ 85°C |
| FN6660075 | Diodes晶振 | SaRonix-eCera™ FN | 66.67MHz | ±25ppm | -40°C ~ 85°C |
| FN6660076 | Diodes晶振 | SaRonix-eCera™ FN | 66.66MHz | ±25ppm | -40°C ~ 85°C |
| FNA620051 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±50ppm | -20°C ~ 70°C |
| FND330009 | Diodes晶振 | SaRonix-eCera™ FN | 133.33MHz | ±50ppm | -20°C ~ 70°C |
| SXF000007 | Diodes晶振 | SaRonix-eCera™ SX | 150MHz | ±50ppm | -20°C ~ 70°C |
| SXF550007 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
| SXF620007 | Diodes晶振 | SaRonix-eCera™ SX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
| UM2600002 | Diodes晶振 | SaRonix-eCera™ UM | 26MHz | ±50ppm | -30°C ~ 85°C |
| NX3261E0125.000000 | Diodes晶振 | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
| FN6660077 | Diodes晶振 | SaRonix-eCera™ FN | 66.666MHz | ±25ppm | -20°C ~ 70°C |
| FN6660079 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -20°C ~ 70°C |
| FN6660080 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -40°C ~ 85°C |
| FN7000003 | Diodes晶振 | SaRonix-eCera™ FN | 70MHz | ±50ppm | -40°C ~ 85°C |
| FN7200004 | Diodes晶振 | SaRonix-eCera™ FN | 72MHz | ±50ppm | -20°C ~ 70°C |
| FN7400001 | Diodes晶振 | SaRonix-eCera™ FN | 74MHz | ±50ppm | -20°C ~ 70°C |
| FN7420006 | Diodes晶振 | SaRonix-eCera™ FN | 74.25MHz | ±50ppm | -20°C ~ 70°C |
| FN7500038 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±50ppm | -20°C ~ 70°C |
| FN7500039 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±25ppm | -20°C ~ 70°C |
| FN7500045 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±50ppm | -40°C ~ 85°C |
| FN7500046 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±25ppm | -20°C ~ 70°C |
| FN7770021 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| FN7770022 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| FN7770023 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -20°C ~ 70°C |
| FN7770024 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -20°C ~ 70°C |
| FN7770025 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -20°C ~ 70°C |
PI4ULS3V4857采用小尺寸、20球WLCSP封裝，現在可提供3000片.
| FN7770026 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -20°C ~ 70°C |
| NX5061E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| YNWMAX153 | Diodes晶振 | SaRonix-eCera™ YN | 153.6MHz | ±35ppm | -40°C ~ 85°C |
| NX3232E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SXF000005 | Diodes晶振 | SaRonix-eCera™ SX | 150MHz | ±50ppm | -40°C ~ 85°C |
| SXF550009 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| SXF620003 | Diodes晶振 | SaRonix-eCera™ SX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| FDC500016 | Diodes晶振 | SaRonix-eCera™ FD | 125MHz | ±20ppm | -20°C ~ 70°C |
| FDC500019 | Diodes晶振 | SaRonix-eCera™ FD | 125MHz | ±20ppm | -20°C ~ 70°C |
| UM2600001 | Diodes晶振 | SaRonix-eCera™ UM | 26MHz | ±20ppm | -30°C ~ 85°C |
| FRSONT077 | Diodes晶振 | SaRonix-eCera™ FR | 77.76MHz | ±50ppm | -40°C ~ 85°C |
| SXF550011 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±20ppm | -20°C ~ 70°C |
| FN6660081 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±25ppm | -40°C ~ 85°C |
| FN7410004 | Diodes晶振 | SaRonix-eCera™ FN | 74.175MHz | ±25ppm | -40°C ~ 85°C |
| FN7420007 | Diodes晶振 | SaRonix-eCera™ FN | 74.25MHz | ±25ppm | -40°C ~ 85°C |
| FN7770028 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -40°C ~ 85°C |
| FN7770029 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±20ppm | -20°C ~ 70°C |
| FN8000056 | Diodes晶振 | SaRonix-eCera™ FN | 80MHz | ±50ppm | -40°C ~ 85°C |
| FN8000059 | Diodes晶振 | SaRonix-eCera™ FN | 80MHz | ±50ppm | -20°C ~ 70°C |
| FN8330020 | Diodes晶振 | SaRonix-eCera™ FN | 83.33MHz | ±50ppm | -40°C ~ 85°C |
| FN8500004 | Diodes晶振 | SaRonix-eCera™ FN | 85MHz | ±50ppm | -20°C ~ 70°C |
| FN9000013 | Diodes晶振 | SaRonix-eCera™ FN | 90MHz | ±50ppm | -20°C ~ 70°C |

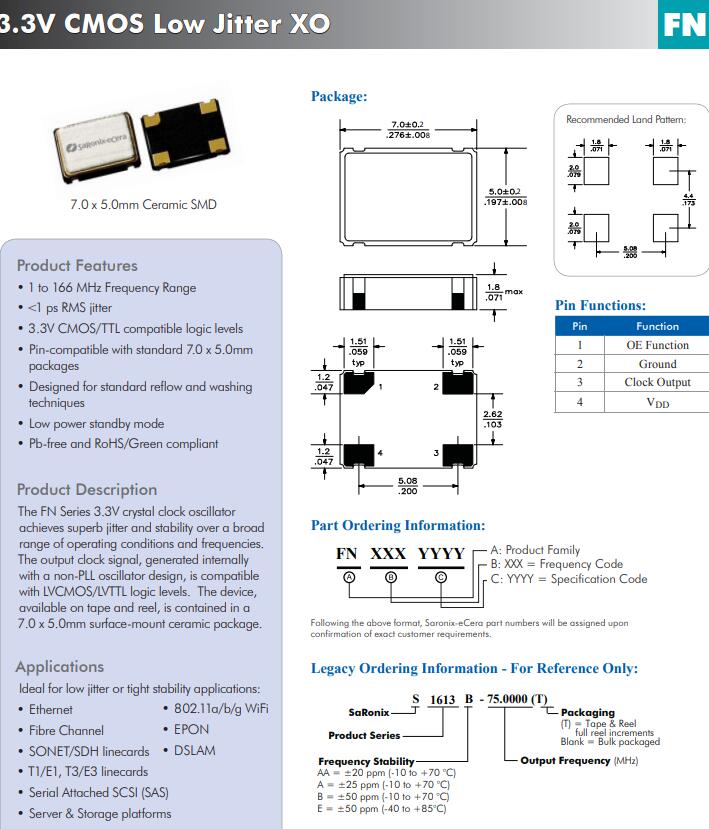

產品特性
1 ~ 166mhz頻率范圍
<1 ps RMS抖動
<1 ps RMS抖動
3.3V CMOS/TTL兼容邏輯電平
引腳兼容標準7.0 x 5.0mm包
用于標準回流和洗滌技術
低功耗待機模式
無鉛和RoHS/綠色環保
產品描述
FN系列3.3V晶體時鐘振蕩器實現卓越的抖動和穩定的廣泛操作條件和頻率的范圍。內部產生的輸出時鐘信號與非鎖相環振蕩器設計，是兼容的LVCMOS/LVTTL邏輯電平。的設備,可在磁帶和卷軸上，是包含在一個7.0 x 5.0mm表面貼裝陶瓷封裝。應用程序
適用于低抖動或緊密穩定的應用:
以太網
光纖通道
SONET / SDH linecards
T1/E1, T3/E3線卡
SAS (Serial Attached SCSI)
服務器和存儲平臺
