更多>>小尺寸具有成本效益的愛普生有源晶振X1G005601012400
來源：http://m.jqhs.com.cn 作者：niit 2022年08月31
小尺寸具有成本效益的愛普生有源晶振X1G005601012400，電子產業如今已成為主流趨勢，隨著電子產品的崛起，振蕩器應用范圍也越來越廣泛，而與普通晶振的性能和價格相比，其價格上面明顯沒有太大優勢，反而會比普通晶振價格高出幾倍。這也在無形中增加了成本預算，可到底什么樣的有源晶振才是我們正確的選擇呢，才具有成本效益呢，應用領域又可歸于哪些呢，這些都需要我們通過深度的探索，方能夠得到自己想要的答案.例如在無線電測量?jī)x器中,它產生各種頻段的正弦信號電壓：在熱加工、熱處理、超聲波加工和某些醫療設備中,它產生大功率的高頻電能對負載加熱；某些電氣設備用振蕩器做成的無觸點開關進行控制；電子鐘和電子手表中采用頻率穩定度很高的振蕩電路作為定時部件等。尤其在通信系統電路中,壓控晶振(VCXO)是其關鍵部件,特別是在鎖相環電路、時鐘恢復電路和頻率綜合器電路等更是重中之重,可以毫不夸張地說在電子通信技術領域。
 Product Number |
 愛普生晶振型號 |
 Frequency |
 LxWxH |
 Output Wave |
 Supply Voltage |
 Ope Temperature |
 Freq. Tol. |
 I [Max] |
| X1G005601011000 | SG-8018CG | 85.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 5.9 mA |
| X1G005601011100 | SG-8018CG | 63.055823 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 5.2 mA |
| X1G005601011200 | SG-8018CG | 42.669354 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 4.4 mA |
| X1G005601012200 | SG-8018CG | 74.250000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 5.2 mA |
| X1G005601012300 | SG-8018CG | 13.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601012400 | SG-8018CG | 20.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601012900 | SG-8018CG | 12.568000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601013000 | SG-8018CG | 6.940000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601013100 | SG-8018CG | 3.072000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601013200 | SG-8018CG | 6.780000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601013300 | SG-8018CG | 13.560000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601013400 | SG-8018CG | 27.120000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 4.4 mA |
| X1G005601013500 | SG-8018CG | 4.096000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601013600 | SG-8018CG | 54.000000 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 5.2 mA |
| X1G005601013900 | SG-8018CG | 7.372800 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601014000 | SG-8018CG | 1.843200 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601014100 | SG-8018CG | 11.289600 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601014200 | SG-8018CG | 11.289600 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
| X1G005601014300 | SG-8018CG | 14.318180 MHz | 2.50 x 2.00 x 0.80 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C | +/-50 ppm | ≤ 3.5 mA |
小尺寸具有成本效益的愛普生有源晶振X1G005601012400，但是對于時序要求敏感的應用，還是有源晶振好，在無線透?jìng)髂K應用中加入有源晶振，提高了數據透?jìng)鞯臅r(shí)效性，讓用戶的需求更方便、更高效、更快捷的完成。

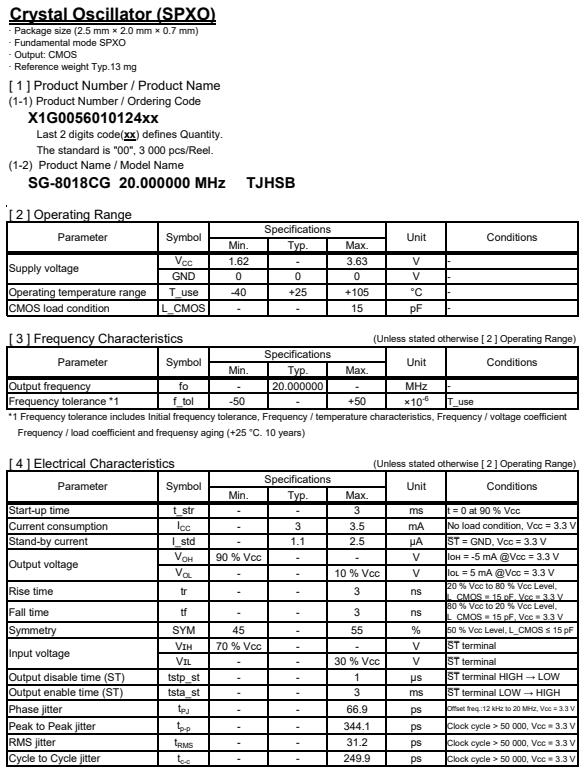

愛普生公司匠心打磨了SG-8018CG，編碼X1G005601012400，進口晶振，頻率20.000000兆赫，輸出WaveCMOS，供電電壓1.62至3.63 V，尺寸(長×寬×高)2.50 × 2.00 × 0.80毫米，工作溫度-40到+105°C，頻率公差±50ppm，額外的OptionsN /，OSC TypeProgrammable Clock時鐘OSC，具備出色的性能，很適合用于高精密的應用程序.
