更多>>X1E000251004600小尺寸石英晶體諧振器非常適合可穿戴設備
來源：http://m.jqhs.com.cn 作者：sie 2022年09月30
X1E000251004600小尺寸石英晶體諧振器非常適合可穿戴設備，愛普生公司是一家敢于在激烈市場斗爭之中，尋找新的機會，通過自身幾十年積累的經驗，使得其在晶體行業如魚得水這般自在，同時，又是一家不斷打造自身的競爭力的公司，隨之推出了FA-118T晶振，愛普生晶振編碼X1E000251004600，頻率24.000000兆赫，尺寸(LxWxH)1.6 x 1.2 x 0.35 mm，客戶負載電容12pf，頻率公差+ / -10 ppm，Fo / temp，特征公差+ / -10 ppm，溫度范圍-20至+75°C，FA-118T已經作為通信模塊的參考時鐘商業化，要求精度高，并作為時鐘用于無線通信和微機的應用需要小型化的設備(TWS(真無線立體聲)、智能手表等)。產品采用多年培育的高精度加工技術打造協助改進客戶系統的性能。應用程序用于消費和工業應用的小型通信模塊，可穿戴設備，MCU時鐘。

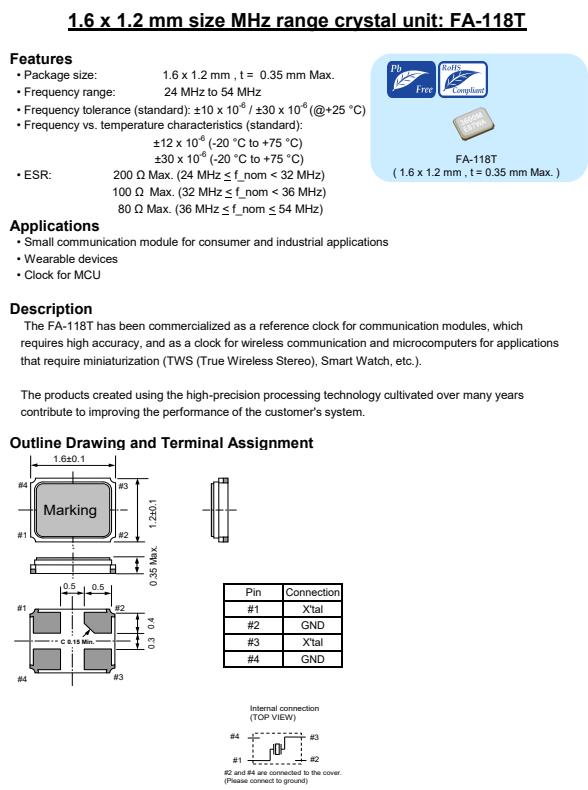

石英晶振特性：包裝尺寸:1.6 x 1.2 mm, t = 0.35 mm，頻率范圍:24 MHz至54 MHz，頻率公差(標準):±10 × 10-6 /±30 × 10-6(@+25°C)，頻率與溫度特性(標準):±12 x 10-6(-20°C至+75°C)，ESR: 200 Ω最大。(24 MHz < f_nom < 32 MHz)，100ΩMax。(32 MHz < f_nom < 36 MHz)，80ΩMax。(36 MHz < f_nom < 54 MHz).
X1E000251004600小尺寸石英晶體諧振器非常適合可穿戴設備，高頻晶振則由最初的5032mm逐步發展至3225mm貼片晶振以及2520mm貼片晶振。而32.768K晶振由最初的圓柱直插(音叉)晶振，到尺寸為7015mm的貼片晶振，再逐步發展至國前廣泛使用的封裝尺寸為3215mmmm的產品，未來尺寸為2016mm的貼片晶振，滲透率亦將逐步提升。
                           Product Number |
 LxWxH |
 Model |
 Frequency |
 CL Value |
 Freq.tol. @+25°C |
| X1E000411000800 | 1.2 x 1 x 0.3mm | FA1210AN | 32.000000 MHz | 8 pF | +/-10 ppm |
| X1E000411001000 | 1.2 x 1 x 0.3mm | FA1210AN | 32.000000 MHz | 8 pF | +/-10 ppm |
| X1E000411001200 | 1.2 x 1 x 0.3mm | FA1210AN | 32.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251000900 | 1.6 x 1.2 x 0.35mm | FA-118T | 27.120000 MHz | 10 pF | +/-30 ppm |
| X1E000251001100 | 1.6 x 1.2 x 0.35mm | FA-118T | 26.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251001400 | 1.6 x 1.2 x 0.35mm | FA-118T | 26.000000 MHz | 9 pF | +/-10 ppm |
| X1E000251001600 | 1.6 x 1.2 x 0.35mm | FA-118T | 37.400000 MHz | 16 pF | +/-10 ppm |
| X1E000251003100 | 1.6 x 1.2 x 0.35mm | FA-118T | 37.400000 MHz | 16 pF | +/-7 ppm |
| X1E000251003200 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 10 pF | +/-10 ppm |
| X1E000251003300 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-30 ppm |
| X1E000251003400 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 9 pF | +/-30 ppm |
| X1E000251003500 | 1.6 x 1.2 x 0.35mm | FA-118T | 30.000000 MHz | 8 pF | +/-20 ppm |
| X1E000251004600 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 12 pF | +/-10 ppm |
| X1E000251005000 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 9 pF | +/-10 ppm |
| X1E000251005600 | 1.6 x 1.2 x 0.35mm | FA-118T | 52.000000 MHz | 9 pF | +/-15 ppm |
| X1E000251005700 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 7 pF | +/-30 ppm |
| X1E000251005900 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251006000 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 10 pF | +/-30 ppm |
| X1E000251006400 | 1.6 x 1.2 x 0.35mm | FA-118T | 26.000000 MHz | 12 pF | +/-10 ppm |
| X1E000251006500 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm |
| X1E000251006800 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-30 ppm |
| X1E000251006900 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 10 pF | +/-30 ppm |
| X1E000251007100 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 12 pF | +/-8 ppm |
| X1E000251007500 | 1.6 x 1.2 x 0.35mm | FA-118T | 26.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251007700 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 9 pF | +/-10 ppm |
| X1E000251007800 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 7 pF | +/-10 ppm |
| X1E000251007900 | 1.6 x 1.2 x 0.35mm | 貼片晶振FA-118T | 32.000000 MHz | 9 pF | +/-10 ppm |
| X1E000251008000 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm |
| X1E000251008600 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-20 ppm |
| X1E000251009900 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 6 pF | +/-30 ppm |
| X1E000251010200 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 8 pF | +/-30 ppm |
| X1E000251010400 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-20 ppm |
| X1E000251011100 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-50 ppm |
| X1E000251011300 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251012100 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251012600 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 7 pF | +/-30 ppm |
| X1E000251013400 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251013800 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm |
| X1E000251014100 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-20 ppm |
| X1E000251014400 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 20 pF | +/-30 ppm |
| X1E000251015000 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 20 pF | +/-10 ppm |
| X1E000251015200 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251015300 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm |
| X1E000251015500 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 9 pF | +/-30 ppm |
| X1E000251015800 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 12 pF | +/-10 ppm |
| X1E000251016100 | 1.6 x 1.2 x 0.35mm | FA-118T | 37.400000 MHz | 8 pF | +/-10 ppm |
| X1E000251016600 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm |
| X1E000251019000 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 12 pF | +/-10 ppm |
| X1E000251019700 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm |
| X1E000251020100 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 8 pF | +/-10 ppm |
| X1E000251021200 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 6 pF | +/-10 ppm |
| X1E000251021500 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-20 ppm |
| X1E000251021900 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 10 pF | +/-10 ppm |
