Today’s high speed serial applications are driving increasing capacity and performance. To meet these demands designers are going to higher clock speeds and greater power densities. Both of the needs are supported by the ultra-low phase jitter OA-U series. The OA-U series may be specified at an any frequency from 100 MHz up to 175 MHz and is able to operate at temperatures up to +125°C. With typical phase jitter of 50 fs @ 156.25 MHz, the OA-U series is the ideal clock solution for high-speed serial applications such as network switching, optical communications and Storage Area Networks (SAN). The miniature 3.2 × 2.5mm SMD package also enables more compact system designs and lower total cost.
泰藝的TXETBLSANF-26.000000為小尺寸,高品質的TCXO振蕩器,廣泛用于通信設備領域，當今的高速串行應用正在推動容量和性能的提高。為了滿足這些需求，設計人員將采用更高的時鐘速度和更大的功率密度。超低相位抖動OA-U系列的SMD振蕩器支持這兩種需求。OA-U系列可以指定在從 100 MHz 到175MHz的任何頻率，并且能夠在高達+125°C的溫度下工作。OA-U系列的典型相位抖動為50 fs@156.25MHz，是網絡交換、光通信和存儲區域網絡 (SAN)等高速串行應用的理想時鐘解決方案。微型3.2 × 2.5mm SMD封裝超小型晶振還支持更緊湊的系統設計和更低的總成本。

OXKTGLJANF-19.200000	Taitien	OX	XO (Standard)	19.2MHz	1.8V
OXKTGLJANF-19.200000	Taitien	OX	XO (Standard)	19.2MHz	1.8V
OXKTGLJANF-19.200000	Taitien	OX	XO (Standard)	19.2MHz	1.8V
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25MHz	3.3V
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25MHz	3.3V
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25MHz	3.3V
OCETGLJTNF-125.000000	Taitien	OC	XO (Standard)	125MHz	3.3V
OCETGLJTNF-125.000000	Taitien	OC	XO (Standard)	125MHz	3.3V
OCETGLJTNF-125.000000	Taitien	OC	XO (Standard)	125MHz	3.3V
OCETGLJTNF-106.250000	Taitien	OC	XO (Standard)	106.25MHz	3.3V
OCETGLJTNF-106.250000	Taitien	OC	XO (Standard)	106.25MHz	3.3V
OCETGLJTNF-106.250000	Taitien	OC	XO (Standard)	106.25MHz	3.3V
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100MHz	3.3V
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100MHz	3.3V
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100MHz	3.3V
OYETGHJANF-66.667000	Taitien	OY	XO (Standard)	66.667MHz	3.3V
OYETGHJANF-66.667000	Taitien	OY	XO (Standard)	66.667MHz	3.3V
OYETGHJANF-66.667000	Taitien	OY	XO (Standard)	66.667MHz	3.3V
OCETGLJTNF-133.000000	Taitien	OC	XO (Standard)	133MHz	3.3V
OCETGLJTNF-133.000000	Taitien	OC	XO (Standard)	133MHz	3.3V
OCETGLJTNF-133.000000	Taitien	OC	XO (Standard)	133MHz	3.3V
OYEUDCJANF-49.152000	Taitien	OY	XO (Standard)	49.152MHz	3.3V

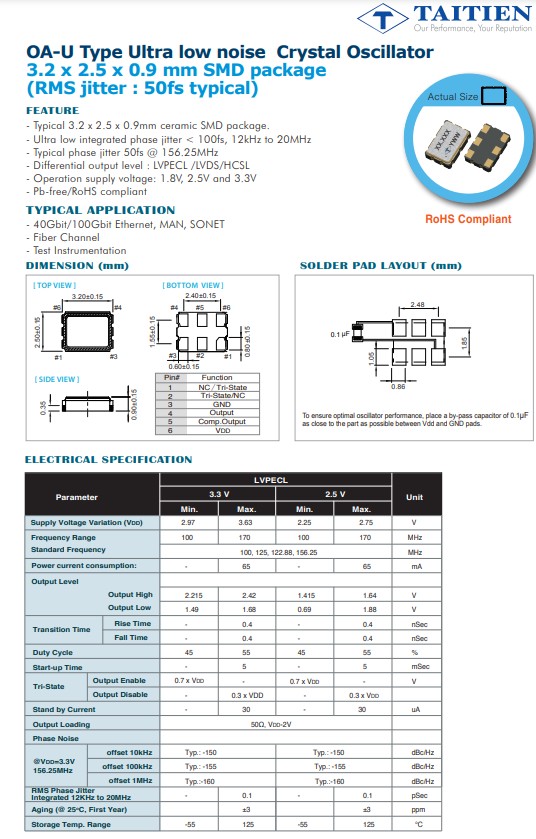

Leveraging Taitien’s vertical integration production of quartz wafers and low phase noise oscillation circuit design technology, the newly launched OA-U series further strengthens the product performance of Taitien’s crystal and oscillator solutions. The OA-U series is available from 100 MHz to 175 MHz with the phase jitter= 100 fs rms, maximum. There are 3 logic outputs: LVPECL, LVDS and CML and the supply voltages are 2.5 V and 3.3 V. The frequency stability maybe specified as tight as ±25 ppm over -40°C to +85°C or ±50ppm over -40°C to +125°C.

OYEUDCJANF-49.152000	Taitien	OY	XO (Standard)	49.152MHz	3.3V
OYEUDCJANF-49.152000	Taitien	OY	XO (Standard)	49.152MHz	3.3V
OYEUDCJANF-45.158400	Taitien	OY	XO (Standard)	45.1584MHz	3.3V
OYEUDCJANF-45.158400	Taitien	OY	XO (Standard)	45.1584MHz	3.3V
OYEUDCJANF-45.158400	Taitien	OY	XO (Standard)	45.1584MHz	3.3V
OXETGCJTNF-125.000000	Taitien	OX	XO (Standard)	125MHz	3.3V
OXETGCJTNF-125.000000	Taitien	OX	XO (Standard)	125MHz	3.3V
OXETGCJTNF-125.000000	Taitien	OX	XO (Standard)	125MHz	3.3V
OXETDLJTNF-100.000000	Taitien	OX	XO (Standard)	100MHz	2.8V
OXETDLJTNF-100.000000	Taitien	OX	XO (Standard)	100MHz	2.8V
OXETDLJTNF-100.000000	Taitien	OX	XO (Standard)	100MHz	2.8V
OXJTGLKTNF-125.000000	Taitien	OX	XO (Standard)	125MHz	2.5V
OXJTGLKTNF-125.000000	Taitien	OX	XO (Standard)	125MHz	2.5V
OXJTGLKTNF-125.000000	Taitien	OX	XO (Standard)	125MHz	2.5V
OTETGCLTNF-156.250000	Taitien	OT	XO (Standard)	156.25MHz	3.3V
OTETGCLTNF-156.250000	Taitien	OT	XO (Standard)	156.25MHz	3.3V
OTETGCLTNF-156.250000	Taitien	OT	XO (Standard)	156.25MHz	3.3V
TXETBLSANF-26.000000	Taitien	TX	TCXO	26MHz	2.8 V ~ 3.3 V
TXETBLSANF-26.000000	Taitien	TX	TCXO	26MHz	2.8 V ~ 3.3 V
TXETBLSANF-26.000000	Taitien	TX	TCXO	26MHz	2.8 V ~ 3.3 V
TXETALSANF-26.000000	Taitien	TX	TCXO	26MHz	2.8 V ~ 3.3 V

新推出的OA-U系列利用泰藝的石英晶片垂直整合生產和低相位噪聲振蕩電路設計技術，進一步強化了臺灣泰藝晶振解決方案的產品性能。OA-U系列的頻率范圍為100 MHz至 175MHz，最大相位抖動 = 100fs rms。有 3 個邏輯輸出：LVPECL、LVDS 和CML，電源電壓為2.5 V 和3.3 V。頻率穩定性可指定為-40°C 至 +85°C上的 ±25 ppm 或 -40°C上的 ±50ppm °C 至 +125°C。泰藝的TXETBLSANF-26.000000為小尺寸,高品質的TCXO振蕩器,廣泛用于通信設備領域

功能
—典型3.2 × 2.5 × 0.9mm陶瓷貼片封裝有源晶振。
-超低集成相位抖動< 100fs, 12kHz至20MHz
-典型的相位抖動50fs @ 156.25MHz
—差動輸出電平:LVPECL /LVDS/HCSL
-工作電源電壓:1.8V, 2.5V和3.3V
- Pb-free /通過無鉛認證
典型的應用程序
—40Gbit/100Gbit以太網，MAN, SONET
——光纖通道
——測試儀器
