更多>>智能電表時鐘模塊晶振Q3805CA10011100
來源：http://m.jqhs.com.cn 作者：jiie 2022年09月16

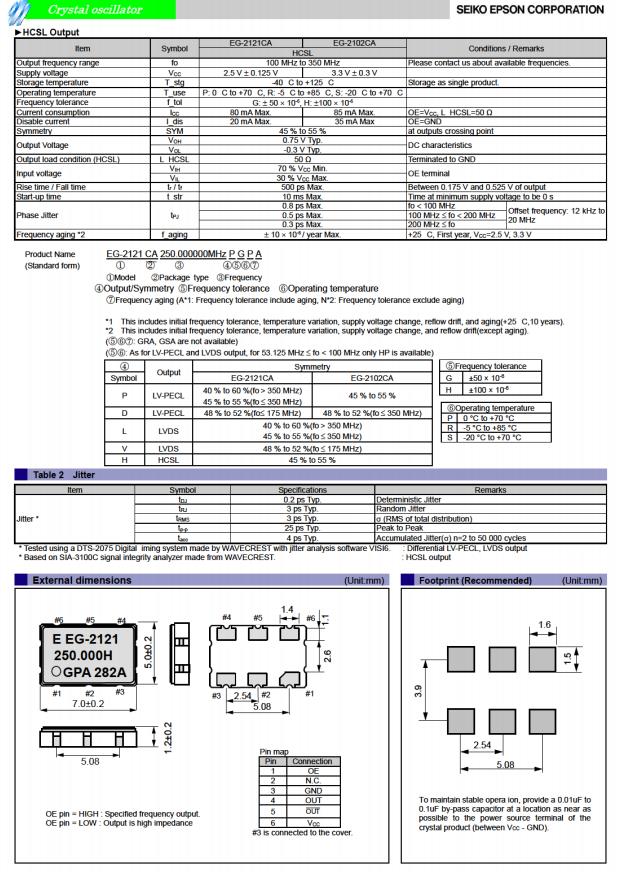

智能電表時鐘模塊晶振Q3805CA10011100，愛普生公司是一家敢于拼搏的知名企業，通過不斷打造自身強有力的競爭力，并且敢于突破自身的精神，開發了大量優質的產品，所生產的產品種類眾多，專注于生產高性能的石英晶體振蕩器，無源晶振，有源晶振等產品，其中也包含推出了EG-2121CA晶振，編碼Q3805CA10011100，頻率70.000000兆赫，輸出WaveLVDS，電源電壓2.38 ~ 2.62 V，尺寸(LxWxH)7.00 x 5.00 x 1.20 mm，工作溫度0至+70°C，頻率公差±100ppm，這是一款微型封裝的有源貼片晶振，具備良好的穩定性能，非常適合智能電表時鐘模塊，儀器儀表，通信設備等領域。
智能電表時鐘模塊晶振Q3805CA10011100，愛普生晶振公司的貼片式石英晶振振蕩器,低電壓啟動功率,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等,產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH / SONET發射基站等領域.符合RoHS/無鉛.
石英晶體振蕩器就是我們俗稱的有源晶振，是一種由石英晶體（二氧化硅晶體）的壓電效應制成的諧振器件。 其基本結構如下：在一定方位角（稱為晶圓，可以是方形，矩形或圓形）切片一塊石英晶體，并將其涂在兩個相應的表面上。 銀層作為電極，每個電極上焊接一根引線連接到引腳，并加入封裝殼體，形成石英晶體諧振器，簡稱石英晶體或晶體，簡稱晶體振蕩器。 由IC構成的振蕩電路的晶體元件稱為晶體振蕩器。 其產品通常包裝在金屬外殼中，也可以包裝在玻璃外殼，陶瓷或塑料中。
                                                                         Product Number |
  Model |
Frequency |
 LxWxH |
 Output Wave |
 Supply Voltage |
 Ope Temperature |
| Q3805CA10011100 | EG-2121CA | 70.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10011200 | EG-2121CA | 248.832000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10011300 | EG-2121CA | 133.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10011400 | EG-2121CA | 75.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10011500 | EG-2121CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| Q3805CA10011600 | EG-2121CA | 106.250000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10011700 | EG-2121CA | 250.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10011800 | EG-2121CA | 311.040000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10011900 | EG-2121CA | 161.132800 MHz | 7.00 x 5.00 x 1.20 mm | 差分晶振 | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012000 | EG-2121CA | 155.520000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012100 | EG-2121CA | 167.331600 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012200 | EG-2121CA | 500.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012300 | EG-2121CA | 156.257000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012400 | EG-2121CA | 125.000260 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012500 | EG-2121CA | 74.250000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012600 | EG-2121CA | 106.250000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| Q3805CA10012700 | EG-2121CA | 95.000000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| Q3805CA10012800 | EG-2121CA | 622.080000 MHz | 7.00 x 5.00 x 1.20 mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
