更多>>高精密的時鐘振蕩器CO4305-30.000-EXT-T是拉隆最有特色的產品
來源：http://m.jqhs.com.cn 作者：cxiu 2023年05月04
高精密的時鐘振蕩器CO4305-30.000-EXT-T是拉隆最有特色的產品，Raltron是歐美頻率元器件的領先者，公司成立于邁阿密，經過自身的成長，以及不斷突破自身的精神，如今的Raltron公司已經發展成為公認經驗豐富的頻率管理產品制造商。公司所制作的產品從簡單音叉晶體到高穩定性有源晶體振蕩器，Raltron提供最全面，以及多元化的頻率管理設備。在保持創新的同時對研發的承諾使得不斷創造領先邊緣晶體和石英晶體振蕩器器件和技術多年。如今，拉隆提供高性能頻率控制解決方案滿足和超越客戶的期望價格，質量，應用工程和客戶支持。
高精密的時鐘振蕩器CO4305-30.000-EXT-T是拉隆最有特色的產品，Raltron公司正在其邁阿密，佛羅里達州開發和制造精密振蕩器。設施，而簡單的水晶諧振器，時鐘振蕩器和濾波器以及天線。諧振器，時鐘振蕩器和濾波器以及天線在位于的幾個設施中生產中國。 該公司正從香港物流樞紐運送全球產品。所有Raltron員工致力于追求品質和卓越。 這個哲學通過多年不間斷的增長，使得Raltron處于領先地位。

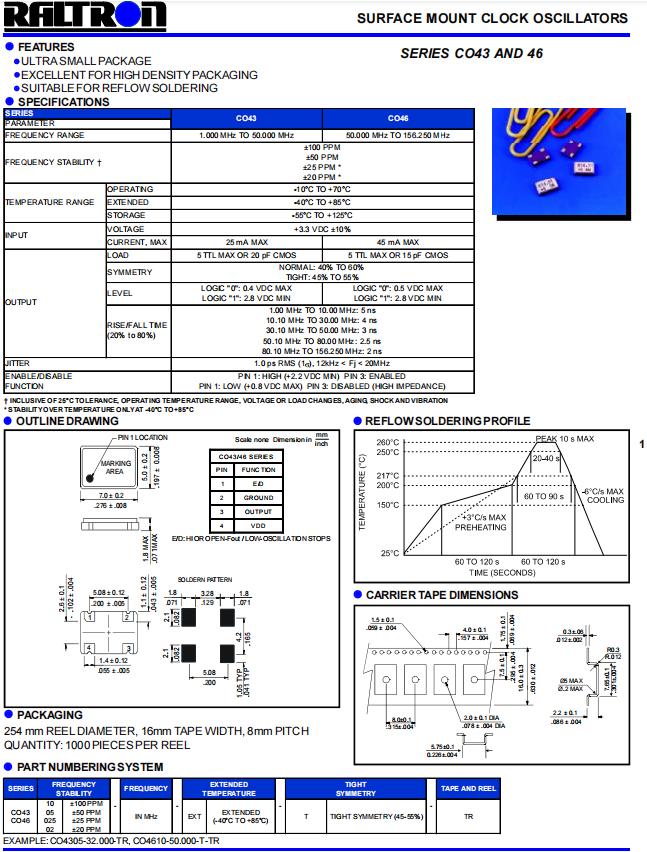

拉隆公司推出編碼CO4305-30.000-EXT-T，型號CO43，Clock Oscillator時鐘振蕩器，有源晶振，頻率為30MHz，尺寸為7 x 5 mm，電壓3.3V，精度為±50ppm，工作溫度-40°C to +85°C，具有超小包裝，適合高密度包裝，適合回流焊接，被廣泛用于汽車音響控制器，無線網絡，儀器儀表等領域.
| 美國進口有源晶振詳情 | 包裝 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage | Operating Temp Range |
| 卷盤 | 24MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-24.000-TR | ||||||
| Raltron | ||||||
| CO43 系列 24 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 24.576MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-24.576-EXT-T-T | ||||||
| Raltron | ||||||
| CO4 Series 24.576 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 24.576MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-24.576-EXT-TR-L30 | ||||||
| Raltron | ||||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-25.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-25.000-EXT-TR-L30 | ||||||
| Raltron | ||||||
| CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-25.000-TR | ||||||
| Raltron | ||||||
| CO4305 系列 25 MHz 50 ppm 3.3 V -10 至 70°C 表面貼裝 振蕩器 | ||||||
| 卷盤 | 25MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-25.000T-TR | ||||||
| Raltron | ||||||
| CO43 Series 25 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 28.224MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-28.224-EXT-TR | ||||||
| Raltron | ||||||
| CO43 Series 28.224 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 28.322MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-28.322-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 28.322 MHz 5 x 7 x 1.8 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 3.6864MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-3.6864-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4305 系列 3.6864 MHz 50 ppm 3.3 V -40 至 85°C 工業 表面貼裝 振蕩器 | ||||||
| 盒裝 | 30MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-30.000-EXT-T | ||||||
| Raltron | ||||||
| CO43 Series 30 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 30MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-30.000MHZ-T | ||||||
| Raltron | ||||||
| CO43 系列 30 MHz 5 x 7 x 1.8 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 32MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-32.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 32 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 晶體振蕩器 | ||||||
| 卷盤 | 32MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-32.000EXT-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 32 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 32.768MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-32.768-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 32.768 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 33MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 33 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 33MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.000-EXT-TR-L30 | ||||||
| Raltron | ||||||
| CO43 系列 33 MHz ± 50 ppm 7 x 5 mm 3.3 V 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 33.333MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.333-EXT-T | ||||||
| Raltron | ||||||
| CO43 系列 33.333 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 33.333MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.333-EXT-TR | ||||||
| Raltron | ||||||
| CO4 系列 33.333 MHz 3.3 V ±50 ppm -40°C 至 +85°C 表面貼裝 CMOS 時鐘 振蕩器 | ||||||
| 卷盤 | 4.096MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-4.096MHZ-TR | ||||||
| Raltron | ||||||
| CO4305 系列 4.096 MHz 50 ppm 3.3 V -10 至 70°C 表面貼裝 振蕩器 | ||||||
| 卷盤 | 40MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-40.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 40 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 48MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-48.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 48 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 48MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-48.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 48 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 48MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-48.000-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 48 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 48MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-48.000EXT-T-TR | ||||||
| Raltron | ||||||
| 低至： ¥4.2223 (CNY) | ||||||
| CO43 Series 48 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 50MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-50.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4305 系列 50 MHz 50 ppm 3.3 V -40 至 85°C 工業 表面貼裝 OSC晶振 | ||||||
| 卷盤 | 50MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-50.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 50 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 50MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-50.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 7 x 5 mm 50 MHz ±50 ppm 3.3 V -10 至 70°C 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 7.68MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-7.680-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 7.68 MHz 7 x 5 mm 3.3 V ±50 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 40MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305S-40.000-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 40 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 10.016MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-10.016MHZ | ||||||
| Raltron | ||||||
| CO43 系列 10.016 MHz 7 x 5 mm 3.3 V ±100 ppm 表面貼裝 時鐘振蕩器 | ||||||
| 卷盤 | 20MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-20.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 20 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盤 | 24.576MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-24.576-EXT-TR | ||||||
| Raltron | ||||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±100 ppm Surface Mount Clock Oscillator | ||||||
| 卷盤 | 25MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-25.000-EXT-TR | ||||||
| Raltron | ||||||
| CO43 系列 3.3 V ±100 ppm -40 至 +85°C 7 x 5 mm 表面貼裝 時鐘振蕩器 |
拉隆公司推出編碼CO4305-30.000-EXT-T，型號CO43，Clock Oscillator時鐘振蕩器，有源晶振，頻率為30MHz，尺寸為7 x 5 mm，電壓3.3V，精度為±50ppm，工作溫度-40°C to +85°C，具有超小包裝，適合高密度包裝，適合回流焊接，被廣泛用于汽車音響控制器，無線網絡，儀器儀表等領域.
