- 產品型號：21510230
- 頻率：32MHz
- 尺寸：3.2x2.5mm
- 產品介紹：耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，日本進口晶振，Kyocera京瓷晶振，型號CX3225SB，編碼為：CX3225SB32000D0PSTC1，是一款小體積晶振...
-

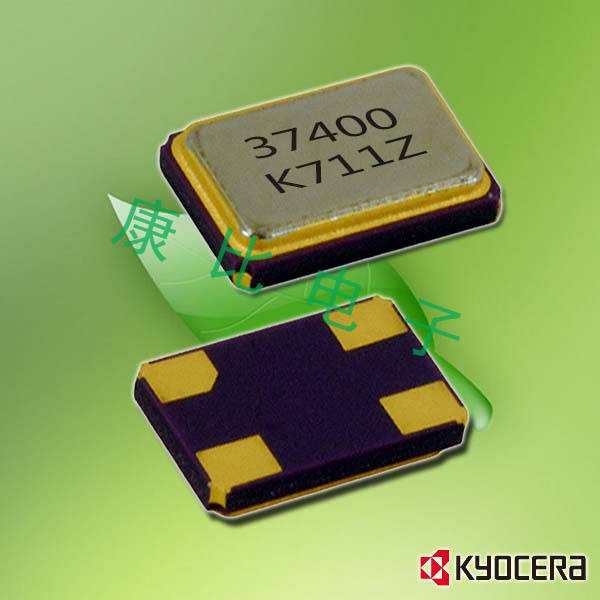

耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃
.jpg)
.jpg)
耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，日本進口晶振，Kyocera京瓷晶振，型號CX3225SB，編碼為：CX3225SB32000D0PSTC1，是一款小體積晶振尺寸3.2x2.5x0.55mm陶瓷封裝，四腳貼片晶振，無源晶振，石英晶體諧振器，車載對應石英振子，進口SMD晶振，耐高溫晶振，無鉛環保晶振，頻率為：32MHz，工作溫度范圍：-40℃至+125℃，石英晶振具有超小型晶振、輕薄型晶振、耐熱、耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。應用于：汽車電子設備，發動機控制，高速車載網絡，車載控制器晶振，汽車動力轉向控制器晶振，汽車胎壓檢測專用晶振，通訊設備晶振，無線網絡晶振，藍牙模塊等應用。
.jpg)

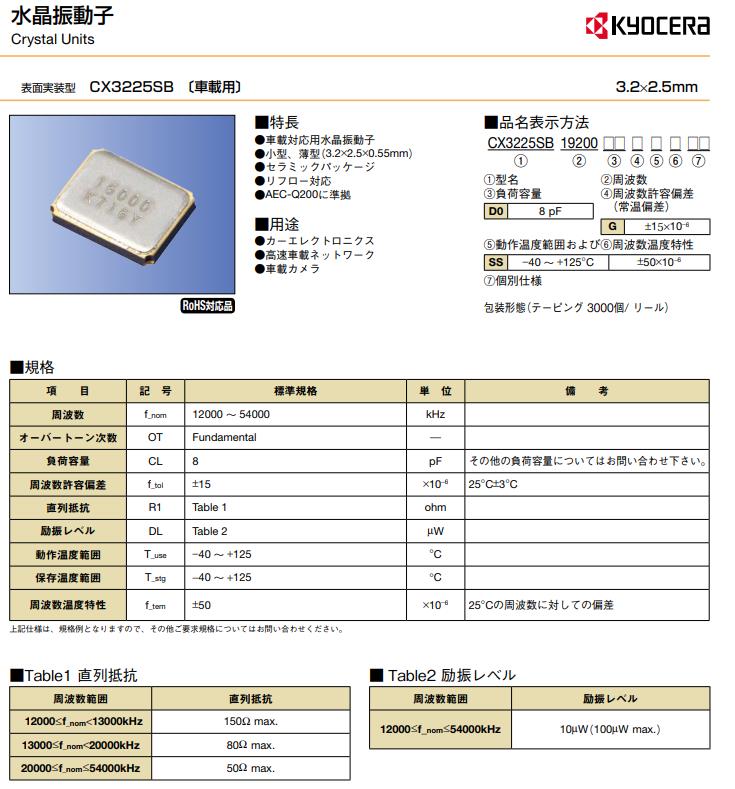

耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，參數表
| 項 目 | 符 號 | CX3225SB 規格 | 単 位 | 備 考 |
| 周波數 | f_nom | 12000 ~ 54000 | kHz | |
| 超調階數 | OT | Fundamental | ― | |
| 負荷容量 | CL | 8 | pF | 關于其他的負荷容量請咨詢 |
| 周波數許容偏差 | f_tol | ±15 | × 10−6 | 25°C±3°C |
| 直列抵抗 | R1 | Table 1 | ohm | |
| 激勵水平 | DL | Table 2 |
W
|
|
| 動作溫度範囲 | T_use | −40~+125 | °C | |
| 保存溫度範囲 | T_stg | −40~+125 | °C | |
| 周波數溫度特性 | f_tem | ± 50 | × 10−6 | 相對于25℃頻率的偏差 |
.jpg)

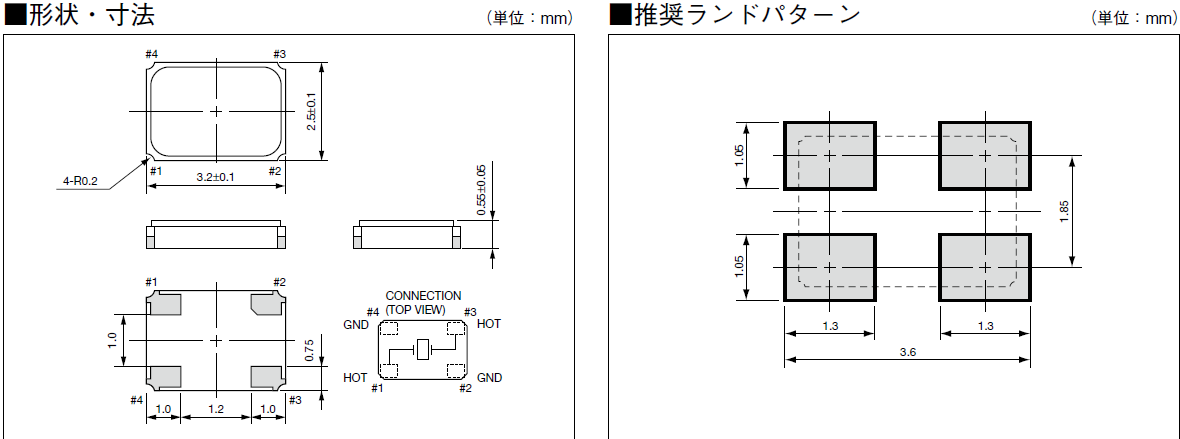

耐高溫晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，尺寸圖
| 原廠編碼 | 貼片晶振 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| CX3225SB30000D0FPLCC | Kyocera京瓷晶振 | CX3225SB | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB38400D0FFFCC | Kyocera京瓷晶振 | CX3225SB | 38.4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CX3225SB48000D0FFFCC | Kyocera京瓷晶振 | CX3225SB | 48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CX3225SB27000D0FPLCC | Kyocera京瓷晶振 | CX3225SB | 27MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB25000D0FPLCC | Kyocera京瓷晶振 | CX3225SB | 25MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB48000D0FPJC2 | Kyocera京瓷晶振 | CX3225SB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB16000E0FPZ25 | Kyocera京瓷晶振 | CX3225SB | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB16000D0FLJZZ | Kyocera京瓷晶振 | CX3225SB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB54000D0FPJC1 | Kyocera京瓷晶振 | CX3225SB | 54MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB12000D0FLJCC | Kyocera京瓷晶振 | CX3225SB | 12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB48000D0FPLCC | Kyocera京瓷晶振 | CX3225SB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB38400D0FPLCC | Kyocera京瓷晶振 | CX3225SB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB48000D0WPSC2 | Kyocera京瓷晶振 | CX3225SB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB13560D0FLJCC | Kyocera京瓷晶振 | CX3225SB | 13.56MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB20000H0FLJCC | Kyocera京瓷晶振 | CX3225SB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB32000H0FLJCC | Kyocera京瓷晶振 | CX3225SB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB40000H0FLJCC | Kyocera京瓷晶振 | CX3225SB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB12000D0FPNCC | Kyocera京瓷晶振 | CX3225SB | 12MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB13560D0FPLCC | Kyocera京瓷晶振 | CX3225SB | 13.56MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB24000D0FPLCC | Kyocera京瓷晶振 | CX3225SB | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB32000D0FPLCC | 京瓷晶振 | CX3225SB | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB54000D0WPSC2 | Kyocera京瓷晶振 | CX3225SB | 54MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB54000D0FPJC2 | Kyocera京瓷晶振 | CX3225SB | 54MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX101F-040.000-H0445 | Kyocera京瓷晶振 | CX3225SB | 40MHz | 0°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB12000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 12MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB12288D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 12.288MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB13560D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 13.56MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB16000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB19200D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB20000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB24000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB24576D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 24.576MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB25000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 25MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB26000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 26MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB27000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 27MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB30000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB32000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB38400D0FLJCC | Kyocera京瓷晶振 | CX3225SB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB38400H0FLJCC | Kyocera京瓷晶振 | CX3225SB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB38400D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB40000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 40MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB48000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB49152D0FLJCC | Kyocera京瓷晶振 | CX3225SB | 49.152MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB49152H0FLJCC | Kyocera京瓷晶振 | CX3225SB | 49.152MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB49152D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 49.152MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB54000D0GPSCC | Kyocera京瓷晶振 | CX3225SB | 54MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB24576H0KESZZ | Kyocera京瓷晶振 | CX3225SB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX3225SB25000D0FLJZ1 | Kyocera京瓷晶振 | CX3225SB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX3225SB27000D0FLJZ1 | Kyocera京瓷晶振 | CX3225SB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
