- 產品型號：37345237
- 頻率：14.7456MHz
- 尺寸：20.86mm x 13.20mm
- 產品介紹：ECS通訊晶振,ECS-100AX-147.4,ECS-100X時鐘振蕩器6G晶振，美國ECS伊西斯晶振，型號ECS-100X，編碼為ECS-100AX-147.4，頻率為：14.7456MHz，尺寸為：20.86mmx13.20...
-

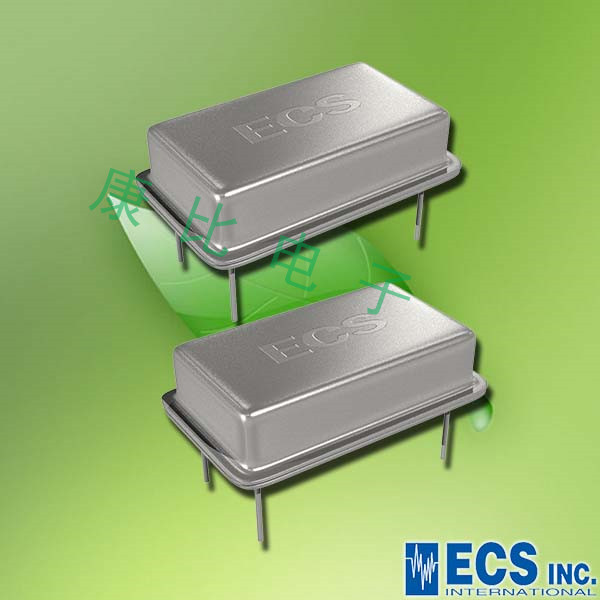

ECS通訊晶振,ECS-100AX-147.4,ECS-100X時鐘振蕩器6G晶振
.jpg)
.jpg)
ECS通訊晶振,ECS-100AX-147.4,ECS-100X時鐘振蕩器6G晶振，美國ECS伊西斯晶振，型號ECS-100X，編碼為ECS-100AX-147.4，頻率為：14.7456MHz，尺寸為：20.86mm x 13.20mm，有源晶振，石英晶體振蕩器，ECS-100X時鐘振蕩器完全兼容TTL電路。帶7針外殼接地的金屬包裝作為屏蔽，以減少輻射。10 TTL輸出負載，低成本，寬頻率范圍，行業標準尺寸，電阻焊接 包裹，3.3V操作（可選），符合無鉛/RoHS標準。應用于移動通訊設備，無線網絡，藍牙模塊，物聯網，汽車電子設備，醫療設備，數碼電子等應用。
.jpg)

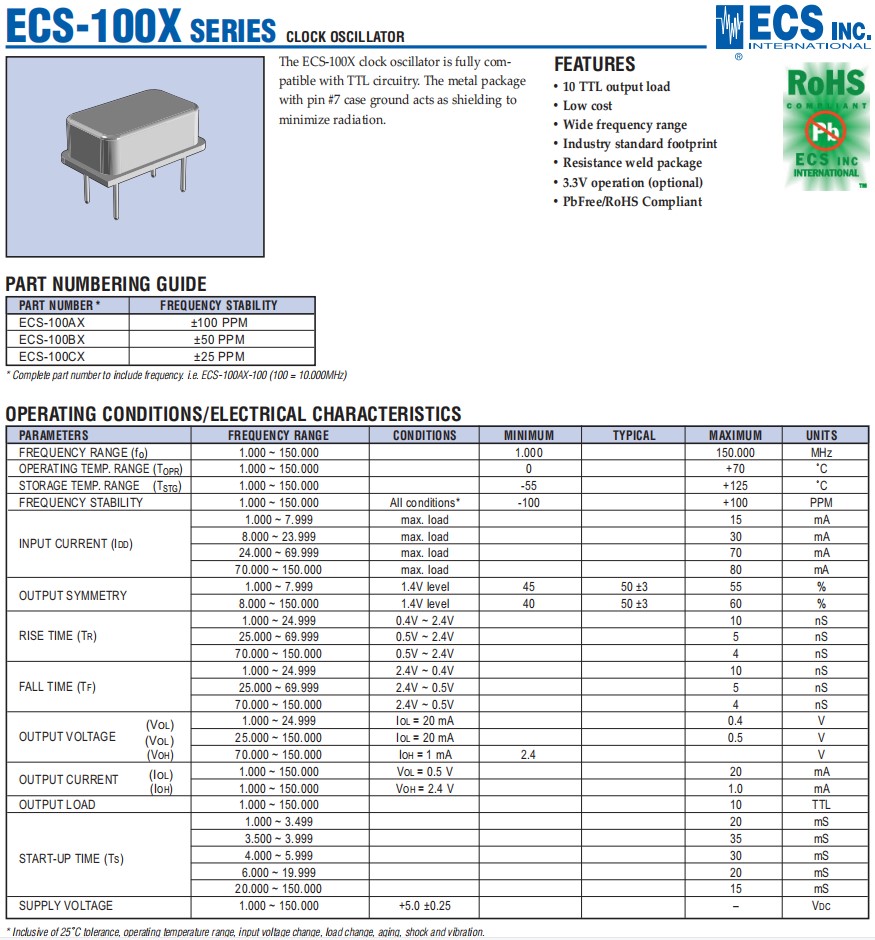

ECS通訊晶振,ECS-100AX-147.4,ECS-100X時鐘振蕩器6G晶振，參數表
| PARAMETERS | FREQUENCY RANGE | CONDITIONS | MINIMUM | TYPICAL | MAXIMUM | UNITS | |
| FREQUENCY RANGE (fo) | 1.000 ~ 150.000 | 1 | 150 | MHz | |||
| OPERATING TEMP. RANGE (TOPR) | 1.000 ~ 150.000 | 0 | 70 | ℃ | |||
| STORAGE TEMP. RANGE (TSTG) | 1.000 ~ 150.000 | -55 | 125 | ℃ | |||
| FREQUENCY STABILITY | 1.000 ~ 150.000 | All conditions* | -100 | 100 | PPM | ||
| 1.000 ~ 7.999 | max . load | 15 | mA | ||||
| INPUT CURRENT (IDD) | 8.000 ~ 23.999 | max . load | 30 | mA | |||
| 24.000 ~ 69.999 | max . load | 70 | mA | ||||
| 70.000 ~ 150.000 | max . load | 80 | mA | ||||
| OUTPUT SYMMETRY | 1.000 ~ 7.999 | 1 .4V level | 45 | 50 ±3 | 55 | % | |
| 8.000 ~ 150.000 | 1 .4V level | 40 | 50 ±3 | 60 | % | ||
| RISE TIME (TR) | 1.000 ~ 24.999 | 0.4V ~ 2.4V | 10 | nS | |||
| 25.000 ~ 69.999 | 0.5V ~ 2.4V | 5 | nS | ||||
| 70.000 ~ 150.000 | 0.5V ~ 2.4V | 4 | nS | ||||
| FALL TIME (TF) | 1.000 ~ 24.999 | 2.4V ~ 0.4V | 10 | nS | |||
| 25.000 ~ 69.999 | 2.4V ~ 0.5V | 5 | nS | ||||
| 70.000 ~ 150.000 | 2.4V ~ 0.5V | 4 | nS | ||||
| OUTPUT VOLTAGE | (VOL ) | 1.000 ~ 24.999 | IOL = 20 mA | 0.4 | V | ||
| (VOL ) | 25.000 ~ 150.000 | IOL = 20 mA | 0.5 | V | |||
| (VOH) | 70.000 ~ 150.000 | IOH = 1 mA | 2.4 | V | |||
| OUTPUT CURRENT | (IOL ) | 1.000 ~ 150.000 | VOL = 0.5 V | 20 | mA | ||
| (IOH) | 1.000 ~ 150.000 | VOH = 2.4 V | 1 | mA | |||
| OUTPUT LOAD | 1.000 ~ 150.000 | 10 | TTL | ||||
| 1.000 ~ 3.499 | 20 | mS | |||||
| START-UP TIME (TS) | 3.500 ~ 3.999 | 35 | mS | ||||
| 4.000 ~ 5.999 | 30 | mS | |||||
| 6.000 ~ 19.999 | 20 | mS | |||||
| 20.000 ~ 150.000 | 15 | mS | |||||
| SUPPLY VOLTAGE | 1.000 ~ 150.000 | +5.0 ±0.25 | – | VDC | |||
.jpg)

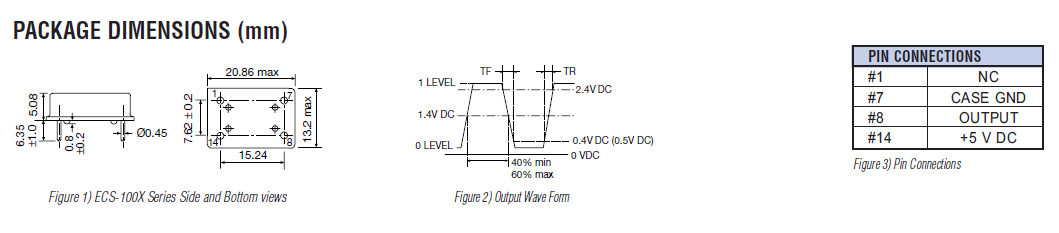

ECS通訊晶振,ECS-100AX-147.4,ECS-100X時鐘振蕩器6G晶振，尺寸圖
.png)
ECS通訊晶振,ECS-100AX-147.4,ECS-100X時鐘振蕩器6G晶振
特性：
•10 TTL輸出負載
•低成本
•頻率范圍廣石英晶振
•行業標準占地面積
•電阻焊包
•3.3V操作（可選）
•無鉛/符合RoHS
.JPG)
| 原廠代碼 | 品牌 | 型號 | 頻率 | 工作溫度 | 石英晶體振蕩器 |
| ECS-100AX-040 | ECS晶振 | ECS-100X | 4MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-200 | ECS晶振 | ECS-100X | 20MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-160 | ECS晶振 | ECS-100X | 16MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-500 | ECS晶振 | ECS-100X | 50MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-010 | ECS晶振 | ECS-100X | 1MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-147.4 | ECS晶振 | ECS-100X | 14.7456MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-640 | ECS晶振 | ECS-100X | 64MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-250 | ECS晶振 | ECS-100X | 25MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-100 | ECS晶振 | ECS-100X | 10MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-110.5 | ECS晶振 | ECS-100X | 11.0592MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-320 | ECS晶振 | ECS-100X | 32MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-060 | ECS晶振 | ECS-100X | 6MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-098.3 | ECS晶振 | ECS-100X | 9.8304MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-480 | ECS晶振 | ECS-100X | 48MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-080 | ECS晶振 | ECS-100X | 8MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-018 | ECS晶振 | ECS-100X | 1.8432MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-020 | ECS晶振 | ECS-100X | 2MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-036 | ECS晶振 | ECS-100X | 3.6864MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-184 | ECS晶振 | ECS-100X | 18.432MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-035 | ECS晶振 | ECS-100X | 3.579545MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-300 | ECS晶振 | ECS-100X | 30MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-061 | ECS晶振 | ECS-100X | 6.144MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-143 | ECS晶振 | ECS-100X | 14.31818MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-012.2 | ECS晶振 | ECS-100X | 1.2288MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-073 | ECS晶振 | ECS-100X | 7.3728MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-400 | ECS晶振 | ECS-100X | 40MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
| ECS-100AX-196.6 | ECS晶振 | ECS-100X | 19.6608MHz | 0°C ~ 70°C | 0.821" L x 0.520" W (20.86mm x 13.20mm) |
