- 產品型號：63214859
- 頻率：45.000MHz
- 尺寸：7.0x5.0mm
- 產品介紹：CSX1-BH3-20-45MHz,CRYSTEK瑞斯克晶振,SMD石英晶體,CSX1-AL1-16-26MHz,6G無線應用晶振，美國進口晶振，CRYSTEK瑞斯克晶振，型號CSX1系列，編碼為：CSX1-BH3-20-45...
-

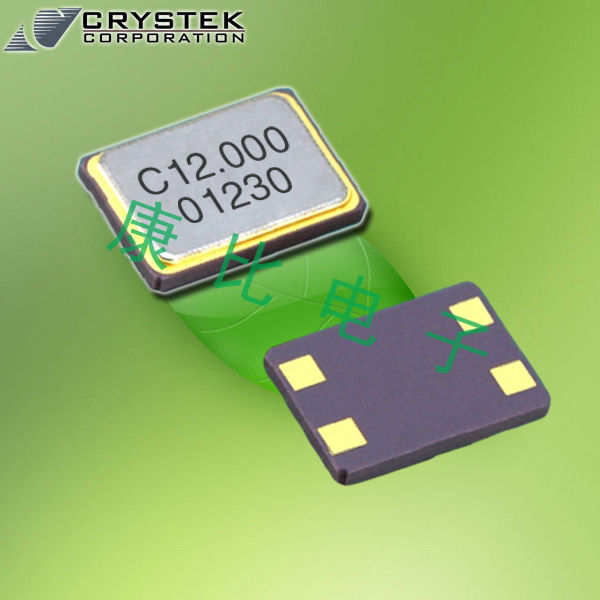

CSX1-BH3-20-45MHz,CRYSTEK瑞斯克晶振,SMD石英晶體
.jpg)
.jpg)
CSX1-BH3-20-45MHz,CRYSTEK瑞斯克晶振,SMD石英晶體,CSX1-AL1-16-26MHz,6G無線應用晶振，美國進口晶振，CRYSTEK瑞斯克晶振，型號CSX1系列，編碼為：CSX1-BH3-20-45MHz，頻率為：45.0000 MHz，小體積晶振尺寸：7.0x5.0mm，四腳貼片晶振，無源晶振，石英晶體諧振器，石英貼片晶振，工作溫度范圍：-40℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特點。應用于：通訊設備，無線網絡，藍牙模塊，平板電腦，儀器儀表設備，醫療設備，安防設備，數碼電子等應用。
.jpg)

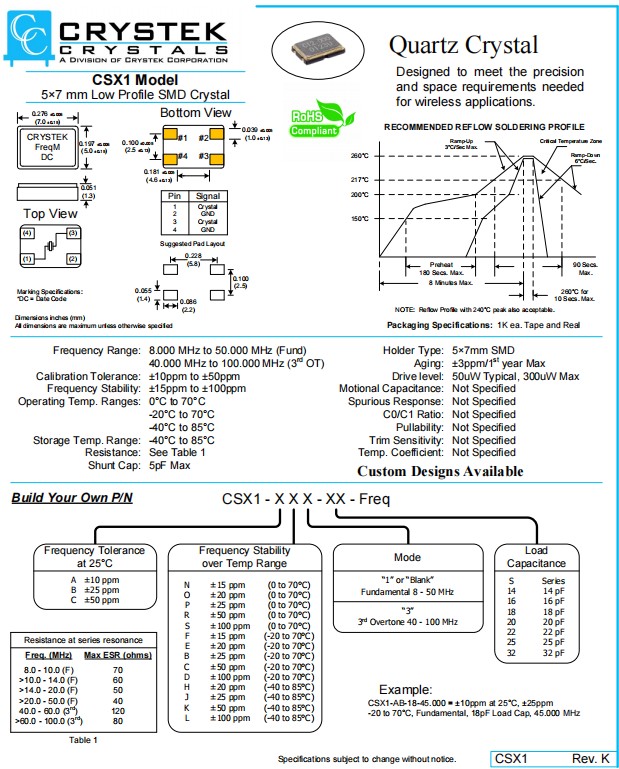

CSX1-BH3-20-45MHz,CRYSTEK瑞斯克晶振,SMD石英晶體,CSX1-AL1-16-26MHz,6G無線應用晶振，參數表
| Frequency Range: | 8.000 MHz to 50.000 MHz (Fund) |
| 40.000 MHz to 100.000 MHz (3rd OT) | |
| Calibration Tolerance: | ±10ppm to ±50ppm |
| Frequency Stability: | ±15ppm to ±100ppm |
| Operating Temp. Ranges: | 0°C to 70°C |
| -20°C to 70°C | |
| -40°C to 85°C | |
| Storage Temp. Range: | -40°C to 85°C |
| Resistance: | See Table 1 |
| Shunt Cap: | 5pF Max |
| Holder Type: | 5×7mm SMD |
| Aging: | ±3ppm/1st year Max |
| Drive level: | 50uW Typical, 300uW Max |
| Motional Capacitance: | Not Specified |
| Spurious Response: | Not Specified |
| C0/C1 Ratio: | Not Specified |
| Pullability: | Not Specified |
| Trim Sensitivity: | Not Specified |
| Temp. Coefficient: | Not Specified |
.jpg)

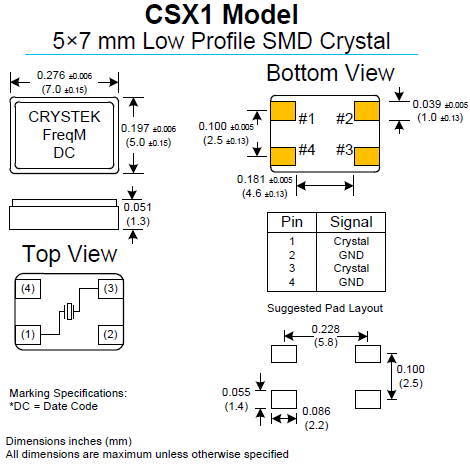

CSX1-BH3-20-45MHz,CRYSTEK瑞斯克晶振,SMD石英晶體,CSX1-AL1-16-26MHz,6G無線應用晶振，尺寸圖
CSX1-BH3-20-45MHz,CRYSTEK瑞斯克晶振,SMD石英晶體,CSX1-AL1-16-26MHz,6G無線應用晶振
小型表面貼片晶振型,是標準的石英晶體諧振器,適用于寬溫范圍的電子數碼產品,家電電器及MP3,MP4,播放器,單片機等領域.可對應8.000MHz以上的頻率,在電子數碼產品,以及家電相關電器領域里面發揮優良的電氣特性,滿足無鉛焊接的回流溫度曲線要求.
| 原廠代碼 | 品牌 | 型號 | 類型 | 頻率 | 頻率穩定度 | 工作溫度 |
| CCSO-914X-250.000 | Crystek晶振 | CCSO | SO (SAW) | 250MHz | ±100ppm | -40°C ~ 85°C |
| CCSO-914X-1000.000 | Crystek晶振 | CCSO | SO (SAW) | 1GHz | ±100ppm | -40°C ~ 85°C |
| CCSO-914X3-1000 | Crystek晶振 | CCSO | SO (SAW) | 1GHz | ±120ppm | -40°C ~ 85°C |
| CVCSO-914-1000 | Crystek晶振 | CVCSO | VCSO (SAW) | 1GHz | +100ppm | -20°C ~ 70°C |
| CE3391-8.000 | Crystek晶振 | C33 | XO (Standard) | 8MHz | ±25ppm | -40°C ~ 85°C |
| C3391-4.096 | Crystek晶振 | C33 | XO (Standard) | 4.096MHz | ±25ppm | 0°C ~ 70°C |
| CCSO-914X-245.760 | Crystek晶振 | CCSO | SO (SAW) | 245.76MHz | ±150ppm | -40°C ~ 85°C |
| C3290-1.544 | Crystek晶振 | C3290 | XO (Standard) | 1.544MHz | ±100ppm | 0°C ~ 70°C |
| C3290-1.843200 | Crystek晶振 | C3290 | XO (Standard) | 1.8432MHz | ±100ppm | 0°C ~ 70°C |
| C3290-10.000 | Crystek晶振 | C3290 | XO (Standard) | 10MHz | ±100ppm | 0°C ~ 70°C |
| C3290-12.000 | Crystek晶振 | C3290 | XO (Standard) | 12MHz | ±100ppm | 0°C ~ 70°C |
| C3290-12.288 | Crystek晶振 | C3290 | XO (Standard) | 12.288MHz | ±100ppm | 0°C ~ 70°C |
| C3290-12.352 | Crystek晶振 | C3290 | XO (Standard) | 12.352MHz | ±100ppm | 0°C ~ 70°C |
| C3290-14.318180 | Crystek晶振 | C3290 | XO (Standard) | 14.31818MHz | ±100ppm | 0°C ~ 70°C |
| C3290-15.360 | Crystek晶振 | C3290 | XO (Standard) | 15.36MHz | ±100ppm | 0°C ~ 70°C |
| C3290-16.000 | Crystek晶振 | C3290 | XO (Standard) | 16MHz | ±100ppm | 0°C ~ 70°C |
| C3290-16.384 | Crystek晶振 | C3290 | XO (Standard) | 16.384MHz | ±100ppm | 0°C ~ 70°C |
| C3290-18.432 | Crystek晶振 | C3290 | XO (Standard) | 18.432MHz | ±100ppm | 0°C ~ 70°C |
| C3290-19.440 | Crystek晶振 | C3290 | XO (Standard) | 19.44MHz | ±100ppm | 0°C ~ 70°C |
| C3290-2.048 | Crystek晶振 | C3290 | XO (Standard) | 2.048MHz | ±100ppm | 0°C ~ 70°C |
| C3290-20.000 | Crystek晶振 | C3290 | XO (Standard) | 20MHz | ±100ppm | 0°C ~ 70°C |
| C3290-20.480 | Crystek晶振 | C3290 | XO (Standard) | 20.48MHz | ±100ppm | 0°C ~ 70°C |
| C3290-24.000 | Crystek晶振 | C3290 | XO (Standard) | 24MHz | ±100ppm | 0°C ~ 70°C |
| C3290-24.704 | Crystek晶振 | C3290 | XO (Standard) | 24.704MHz | ±100ppm | 0°C ~ 70°C |
| C3290-25.000 | Crystek晶振 | C3290 | XO (Standard) | 25MHz | ±100ppm | 0°C ~ 70°C |
| C3290-3.686400 | Crystek晶振 | C3290 | XO (Standard) | 3.6864MHz | ±100ppm | 0°C ~ 70°C |
| C3290-30.000 | Crystek晶振 | C3290 | XO (Standard) | 30MHz | ±100ppm | 0°C ~ 70°C |
| C3290-32.000 | Crystek晶振 | C3290 | XO (Standard) | 32MHz | ±100ppm | 0°C ~ 70°C |
| C3290-32.768 | 石英晶振 | C3290 | XO (Standard) | 32.768MHz | ±100ppm | 0°C ~ 70°C |
| C3290-33.000 | Crystek晶振 | C3290 | XO (Standard) | 33MHz | ±100ppm | 0°C ~ 70°C |
| C3290-33.333 | Crystek晶振 | C3290 | XO (Standard) | 33.333MHz | ±100ppm | 0°C ~ 70°C |
| C3290-35.000 | Crystek晶振 | C3290 | XO (Standard) | 35MHz | ±100ppm | 0°C ~ 70°C |
| C3290-4.000 | Crystek晶振 | C3290 | XO (Standard) | 4MHz | ±100ppm | 0°C ~ 70°C |
| C3290-40.000 | Crystek晶振 | C3290 | XO (Standard) | 40MHz | ±100ppm | 0°C ~ 70°C |
| C3290-44.736 | Crystek晶振 | C3290 | XO (Standard) | 44.736MHz | ±100ppm | 0°C ~ 70°C |
| C3290-45.000 | Crystek晶振 | C3290 | XO (Standard) | 45MHz | ±100ppm | 0°C ~ 70°C |
| C3290-49.152 | Crystek晶振 | C3290 | XO (Standard) | 49.152MHz | ±100ppm | 0°C ~ 70°C |
| C3290-50.000 | Crystek晶振 | C3290 | XO (Standard) | 50MHz | ±100ppm | 0°C ~ 70°C |
| C3290-51.840 | Crystek晶振 | C3290 | XO (Standard) | 51.84MHz | ±100ppm | 0°C ~ 70°C |
| C3290-6.176 | Crystek晶振 | C3290 | XO (Standard) | 6.176MHz | ±100ppm | 0°C ~ 70°C |
| C3290-7.372800 | Crystek晶振 | C3290 | XO (Standard) | 7.3728MHz | ±100ppm | 0°C ~ 70°C |
