- 產品型號：51237011
- 頻率：26.000MHz
- 尺寸：2.0x1.6mm
- 產品介紹：AKER安碁晶振,C1E-26.000-10-3050-R3,微處理器6G晶振,C1E-24.000-12-2025-R,石英貼片晶振，美國進口晶振，AKER安碁晶振C1E系列，編碼為：C1E-26.000-10-3050-R3，...
-

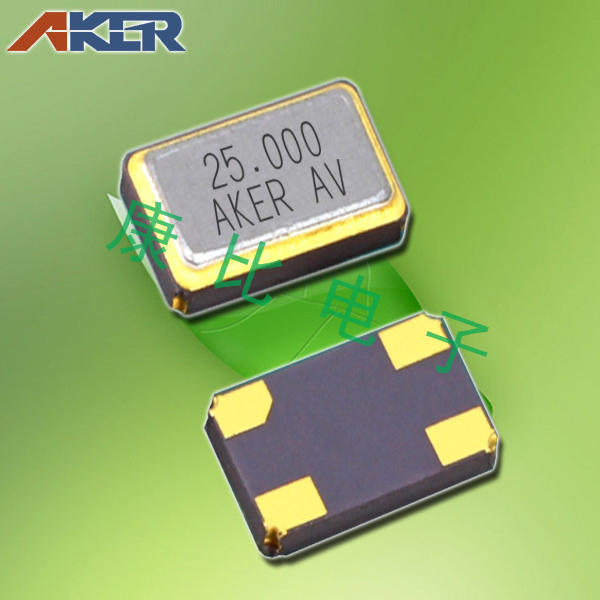

AKER安碁晶振,C1E-26.000-10-3050-R3,微處理器6G晶振
航欄(16).jpg)
.jpg)

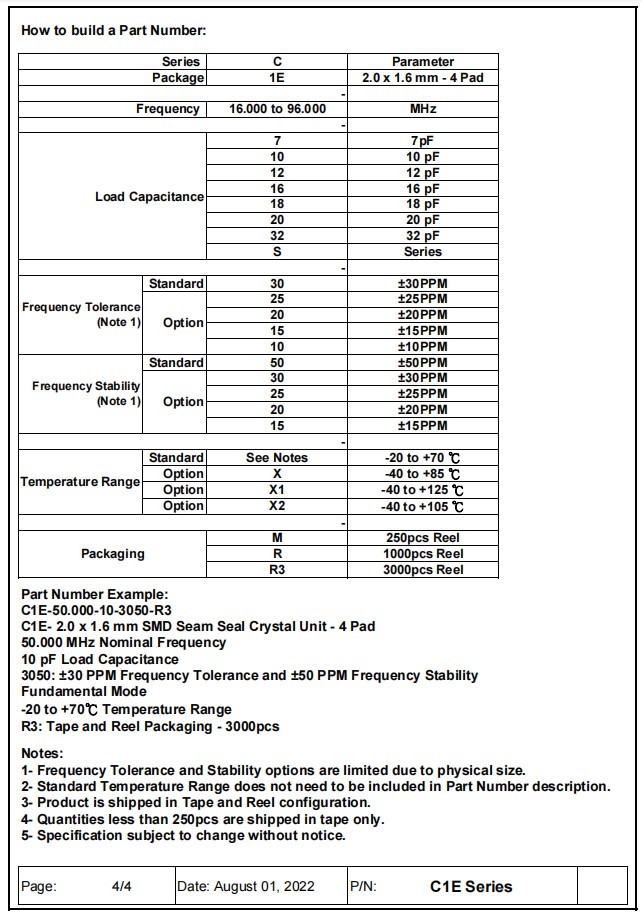

AKER安碁晶振,C1E-26.000-10-3050-R3,微處理器6G晶振,C1E-24.000-12-2025-R,石英貼片晶振，美國進口晶振，AKER安碁晶振C1E系列，編碼為：C1E-26.000-10-3050-R3，頻率為：26.0000 MHz，小體積晶振尺寸為2.0x1.6mm，表面安裝-4墊通用產品規格，四腳貼片晶振，無源晶振，石英晶體諧振器，SMD封縫密封晶體單元-4墊，26.000MHz標稱頻率，10pF負載電容，3050：±30PPM頻率公差和±50PPM頻率穩定性，擴展工作溫度范圍-40到+85℃，R3：磁帶和卷軸包裝-3000個，C1E系列石英晶振具有超小型，輕薄型，應用于：可穿戴設備，小型便捷式設備，通訊設備，無線網絡，藍牙模塊，微處理器6G晶振，智能手機，平板電腦，數碼電子等應用。
.jpg)

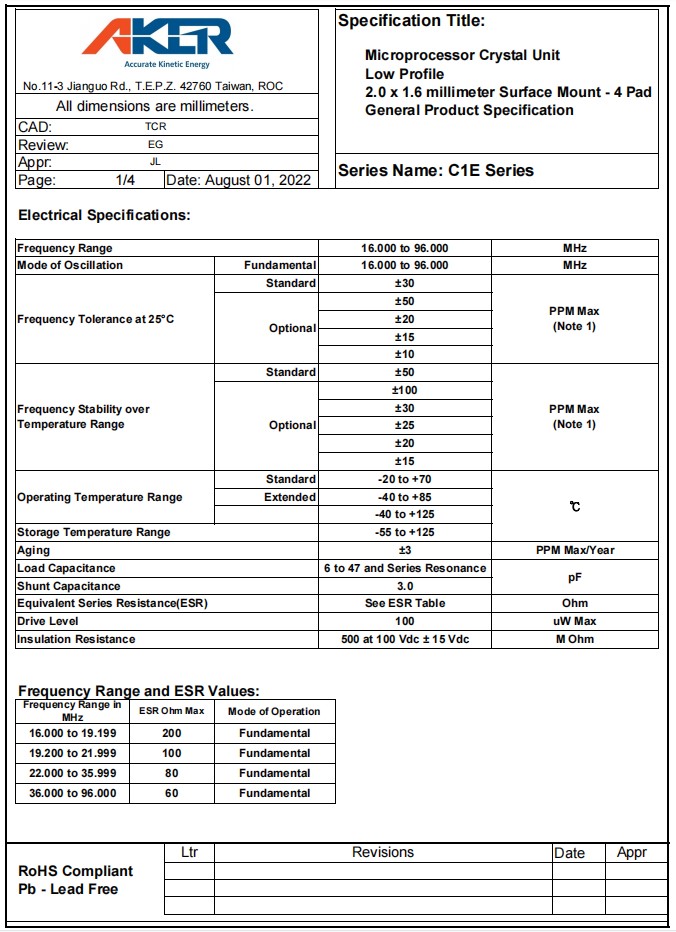

AKER安碁晶振,C1E-26.000-10-3050-R3,微處理器6G晶振,C1E-24.000-12-2025-R,石英貼片晶振，參數表
| Frequency Range | 16.000 to 96.000 | MHz | |
| Mode of Oscillation | Fundamental | 16.000 to 96.000 | MHz |
| Frequency Tolerance at 25°C | Standard | ±30 |
PPM Max (Note 1) |
| Optional | ±50 | ||
| ±20 | |||
| ±15 | |||
| ±10 | |||
|
Frequency Stability over Temperature Range |
Standard | ±50 |
PPM Max (Note 1) |
| Optional | ±100 | ||
| ±30 | |||
| ±25 | |||
| ±20 | |||
| ±15 | |||
| Operating Temperature Range | Standard | -20 to +70 | ℃ |
| Extended | -40 to +85 | ||
| -40 to +125 | |||
| Storage Temperature Range | -55 to +125 | ||
| Aging | ±3 | PPM Max/Year | |
| Load Capacitance | 6 to 47 and Series Resonance | pF | |
| Shunt Capacitance | 3.0 | ||
| Equivalent Series Resistance(ESR) | See ESR Table | Ohm | |
| Drive Level | 100 | uW Max | |
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | |
.jpg)

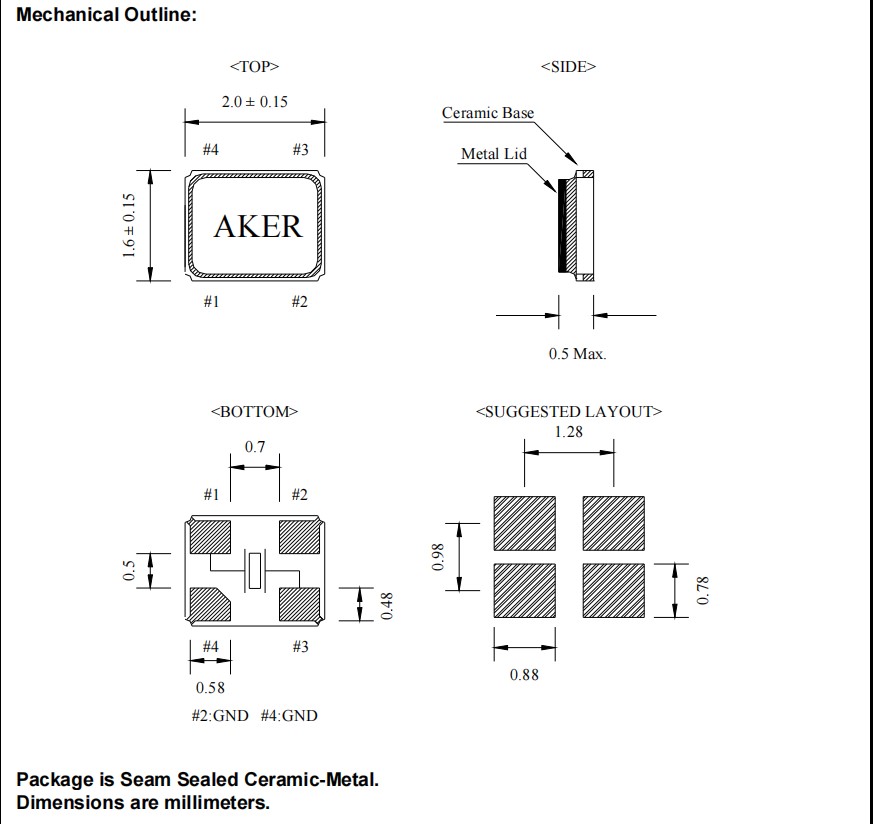

AKER安碁晶振,C1E-26.000-10-3050-R3,微處理器6G晶振,C1E-24.000-12-2025-R,石英貼片晶振，尺寸圖
| 型號 | 供應商 | 類型 | 石英晶體諧振器 |
| C1E-20.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-24.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-37.400-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm 4-Pin SMD T/R |
| C1E-32.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm 4-Pin SMD T/R |
| C1E-50.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-27.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-54.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 54MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-20.480-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 20.48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-40.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-48.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-30.720-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 30.72MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-27.120-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-30.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm 4-Pin SMD T/R |
| C1E-24.576-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 24.576MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-36.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 36MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-44.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 44MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-26.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-20.480-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 20.48MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-40.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-38.400-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-48.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-30.720-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 30.72MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-33.000-10-1530-X-R | Aker晶振 | 石英晶體 | Crystal 33MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-25.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-20.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-54.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 54MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-24.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-31.250-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 31.25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-37.400-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin SMD T/R |
| C1E-26.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-50.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-30.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin SMD T/R |
| C1E-25.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-36.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 36MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-32.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin SMD T/R |
| C1E-27.120-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-27.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C1E-38.400-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 60Ohm 4-Pin SMD T/R |
| C1E-32.000-8-1515-R | Aker安碁晶振 | 石英晶體 | Crystal 32MHz ±15ppm (Tol) ±15ppm (Stability) 8pF FUND 80Ohm 4-Pin SMD T/R |
| C1E-38.400-10-1010-R | Aker安碁晶振 | 石英晶體 | Crystal 38.4MHz ±10ppm (Tol) ±10ppm (Stability) 10pF FUND 60Ohm Automotive T/R |
| C1E-28.63636-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 28.63636MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-16.000-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Microprocessor Crystal Unit Low Profile 2.0 x 1.6 millimeter Surface Mount |
| C1E-19.200-10-1530-X-R | Aker安碁晶振 | 石英晶體 | Microprocessor Crystal Unit Low Profile 2.0 x 1.6 millimeter Surface Mount |
| C1E-16.000-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Microprocessor Crystal Unit Low Profile 2.0 x 1.6 millimeter Surface Mount |
| C1E-24.000-7-2020-R | Aker安碁晶振 | 石英晶體 | Microprocessor Crystal Unit Low Profile 2.0 x 1.6 millimeter Surface Mount |
| C1E-19.200-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Microprocessor Crystal Unit Low Profile 2.0 x 1.6 millimeter Surface Mount |
| C1E-30.720-10-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 30.72MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-24.576-8-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 24.576MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-32.000-12-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 32MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-33.000-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 33MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-37.400-12-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 37.4MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-25.000-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 25MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-27.000-12-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 27MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-44.000-8-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 44MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-50.000-12-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-31.250-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 31.25MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-24.000-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 24MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-20.000-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 20MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-31.250-12-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 31.25MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-54.000-10-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 54MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-33.000-8-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 33MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-36.000-12-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 36MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-28.63636-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 28.63636MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-32.000-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 32MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-38.400-10-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 38.4MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-50.000-8-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-26.000-10-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-44.000-10-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 44MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-31.250-8-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 31.25MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 80Ohm Automotive 4-Pin SMD T/R |
| C1E-40.000-12-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 40MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-48.000-10-1520-R | Aker安碁晶振 | 石英晶體 | Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 60Ohm Automotive 4-Pin SMD T/R |
| C1E-27.120-8-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-26.000-8-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C1E-38.400-8-1530-X-R | Aker安碁晶振 | 石英晶體 | Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 60Ohm Automotive 4-Pin SMD T/R |
