首頁進口晶振 AEL晶振ELS06-32.768kHz-9-T,2012mm,AEL晶振,輕薄型晶振

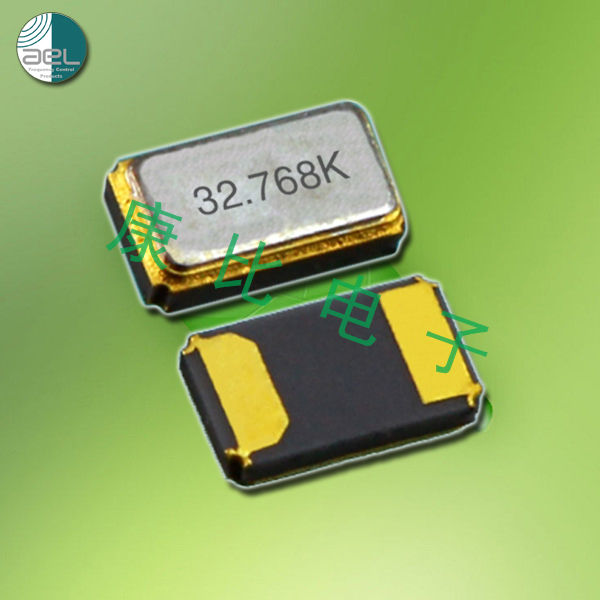

ELS06-32.768kHz-9-T,2012mm,AEL晶振,輕薄型晶振

產品型號：89212929
頻率：32.768KHz
尺寸：2.0x1.2x0.6mm
產品介紹：ELS06-32.768kHz-9-T,2012mm,AEL晶振,輕薄型晶振,ELS06,手表晶振，英國進口晶振，AEL艾爾晶振，型號：ELS06系列，編碼為：ELS06-32.768kHz-9-T，頻率：32.768KHz，...

ELS06-32.768kHz-9-T,2012mm,AEL晶振,輕薄型晶振,ELS06,手表晶振，英國進口晶振，AEL艾爾晶振，型號：ELS06系列，編碼為：ELS06-32.768kHz-9-T，頻率：32.768KHz，負載電容：9pF，工作溫度范圍：-40℃至+85℃，精度：±20ppm，小體積晶振尺寸：2.0x1.2x0.6mm，兩腳貼片晶振，石英晶振，無源晶振，SMD晶振，石英晶體諧振器，2012晶振，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點，應用于：移動通訊晶振，無線網絡晶振，儀器儀表晶振，可穿戴設備晶振，鐘表電子晶振，汽車電子等應用。

ELS06-32.768kHz-9-T,2012mm,AEL晶振,輕薄型晶振,ELS06,手表晶振，產品特點：
•SMD音叉石英晶體諧振器
•公差：±20ppm，±10ppm可用
•工作溫度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

ELS06-32.768kHz-9-T,2012mm,AEL晶振,輕薄型晶振,ELS06,手表晶振,參數表

PARAMETERS			MAX (Unless otherwise noted)
Frequency			32.768 kHz
Operation Mode			Flexural Mode (Tuning Fork)
Operating Temperature			-40°C to +85°C, see options
Storage Temperature			-55°C to +125°C
Frequency Tolerance @ 25°C			± 20PPM, see options
Temperature Coefficient			-0.04 PPM / (?°C)2
Turn Over Temperature			+20°C to +30°C
Equivalent Series Resistance (ESR) For -40 ~ +85°C option For -40 ~ +125°C and -55 ~ +125°C option			90 kOhms 110 kOhms
Load Capacitance (CL)			12.5 pF, see options
Shunt Capacitance (C0)			0.9 ~ 1.2 pF Typ 2.0 pF
Drive Level			0.1 μW Typ 0.5 μW
Q value			9,000 Min
Aging@ 25°C ± 3°C First year			± 3ppm
Insulation Resistance@ 100Vdc ± 15V			500 MOhms
Seal Method			Seam
RoHS Compliant			Yes
Pb Free			Yes
MSL			NA

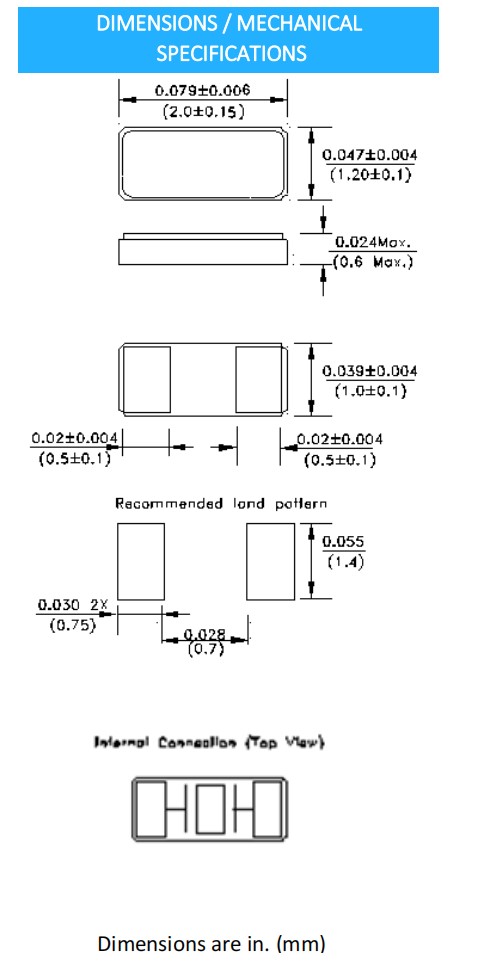

ELS06-32.768kHz-9-T,2012mm,AEL晶振,輕薄型晶振,ELS06,手表晶振,尺寸圖

進口SMD晶振	品牌	頻率	長度	寬度	高度
ELS07-32.768kHz-6-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS06-32.768kHz-9-T	AEL晶振	32.768 kHz	2mm	1.2mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	32.768 kHz	1.6mm	1mm	0.5mm
X32K768L025	AEL晶振	32.768 kHz	2.1mm	6.2mm	13.2mm
X32K768L104	AEL晶振	32.768 kHz	2.9mm	8mm	17mm
X32K768S003	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S012	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S013	艾爾晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S020	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S021	AEL晶振	32.768 kHz	4.1mm	1.5mm	0.7mm
X32K768S036	AEL晶振	32.768 kHz	10.41mm	4.06mm	3.56mm
X32K768S038	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S041	AEL晶振	32.768 kHz	4mm	1.5mm	0.7mm
X32K768S045	AEL晶振	32.768 kHz	2mm	6mm	9mm
X32K768S051	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S067	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S073	AEL晶振	32.768 kHz	6mm	2.5mm	8.3mm
X32K768S112	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S115	AEL晶振	32.768 kHz	8mm	4mm	2.4mm
X32K768S134	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S233	AEL晶振	32.768 kHz	10.4mm	4mm	3.5mm
X32K768S239	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S300	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
